Injection washing and drying system with water filtering to preserve pump performance

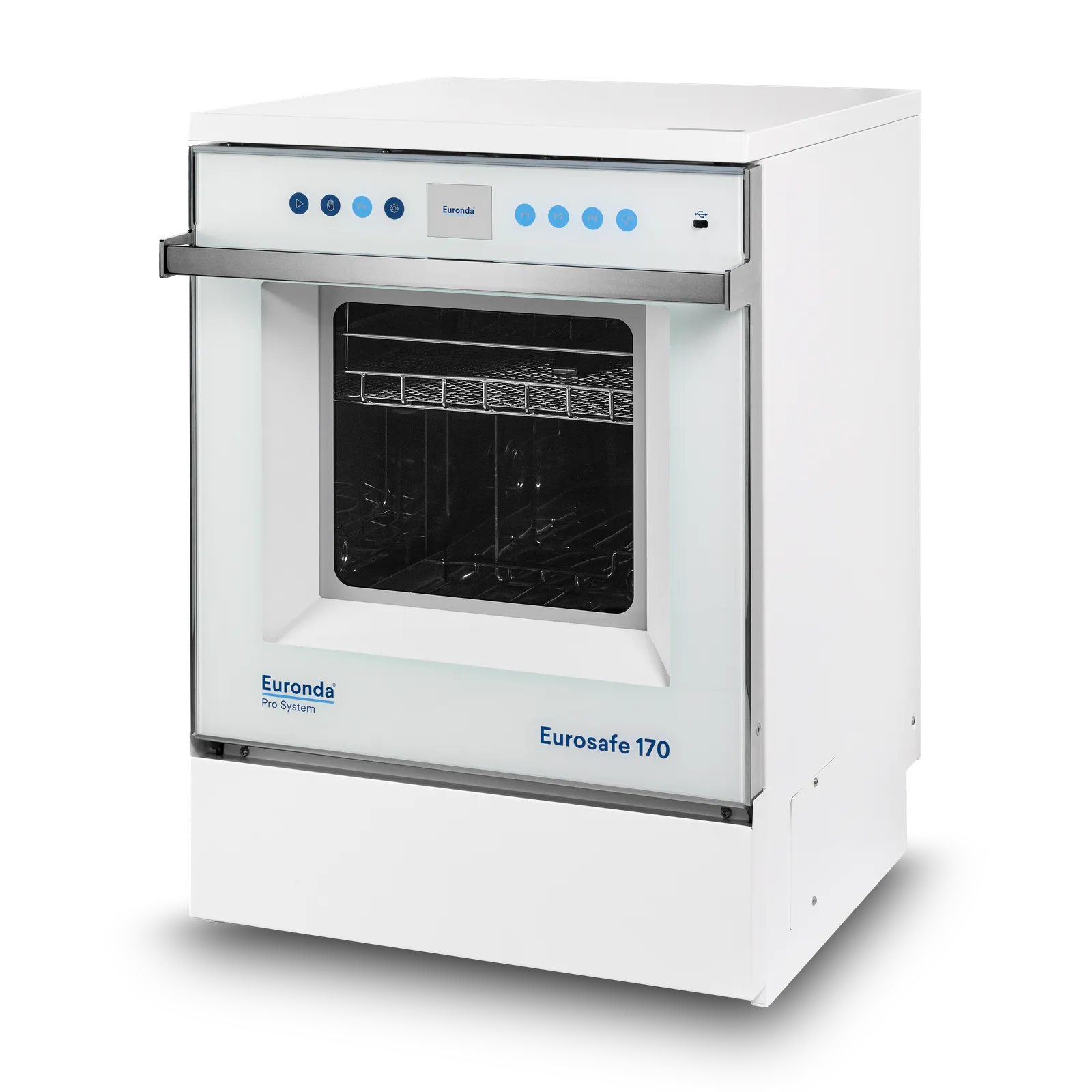

Euronda Thermodisinfector Eurosafe 170
EurondaEurosafe 170 thermodisinfector meets the needs of clinics with a high number of patients.
- Dimensions
- 60 x 84 x 63 cm (WxHxD)
- Weight
- 90 kg
- Chamber capacity
- 170 L
- Power supply
- Single-phase 220 V / 50 Hz or Three-phase 380 V / 50 Hz
Overview
What it does.
Eurosafe 170 thermodisinfector meets the needs of clinics with a high number of patients. Efficiency and longevity are ensured by the injection washing and drying system and a water filtering system that preserves pump performance over time. It allows the user to choose 3 from 20 preset cycles by matching them to the buttons under the 3.5" colour display, making them easy to select. It also allows the creation of customised cycles based on the specific needs of the material to be treated, adjusting duration and washing temperature. Eurosafe 170 is equipped with an integrated softener that allows the use of mains water and monitors the correct regeneration of the resins, giving a warning in the event of salt deficiency. The automatic dosing unit calibrates and injects the two detergent liquids, positioned outside the thermodisinfector, autonomously and without waste. At the end of each cycle, it creates a file that can be transferred to a PC via USB, reporting all process data (time, temperature, cycle number), while also validating the load. Made in Italy with durable AISI 316L stainless steel.
Key features
What makes it different.
20 preset cycles, with 3 preferred cycles assignable to quick-access buttons on the 3.5" colour display
Customisable cycles based on material, adjusting duration and washing temperature
Integrated softener for mains water use, with resin regeneration monitoring and salt deficiency warning
Automatic dosing unit for autonomous, waste-free calibration and injection of two detergent liquids
End-of-cycle data file transferable via USB (time, temperature, cycle number), with load validation
Optional Ethernet connection and thermal printer for data transfer/printing
Made in Italy with durable AISI 316L stainless steel
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Classification | Medical Device Class IIb |
| Dimensions | 60 x 84 x 63 cm (WxHxD) |
| Weight | 90 kg |
| Chamber capacity | 170 L |
| Power supply | Single-phase 220 V / 50 Hz or Three-phase 380 V / 50 Hz |
| Power consumption | 2700 W (220 V) / 5600 W (380 V) |
| Connectivity | USB and E-Memory software (included); Datalogger (optional) |
| CE Ref | DS 500 CDL |
