29-litre chamber, holding up to 5 x 55 cm trays (+17 cm vs. a 24-litre autoclave)

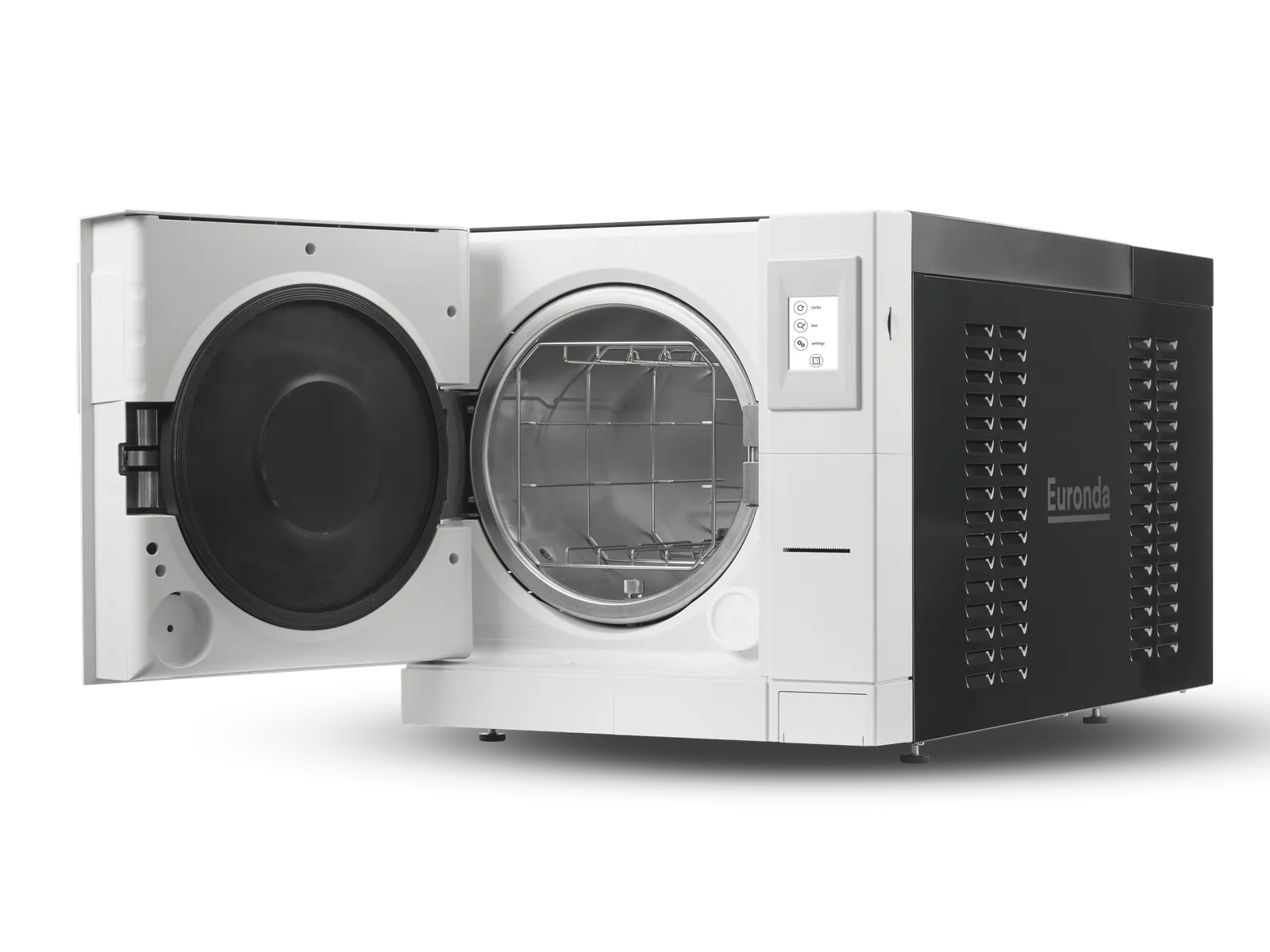

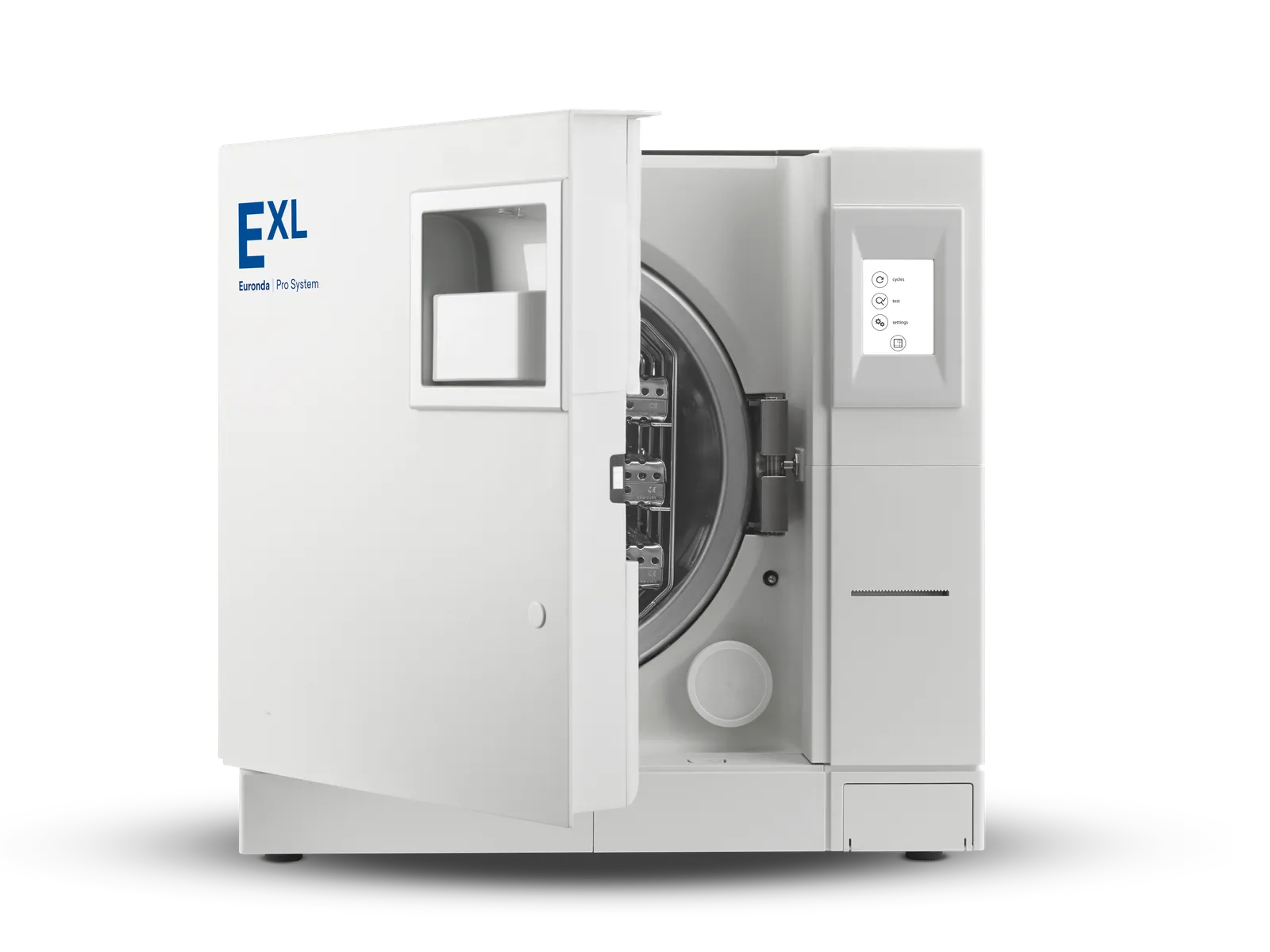

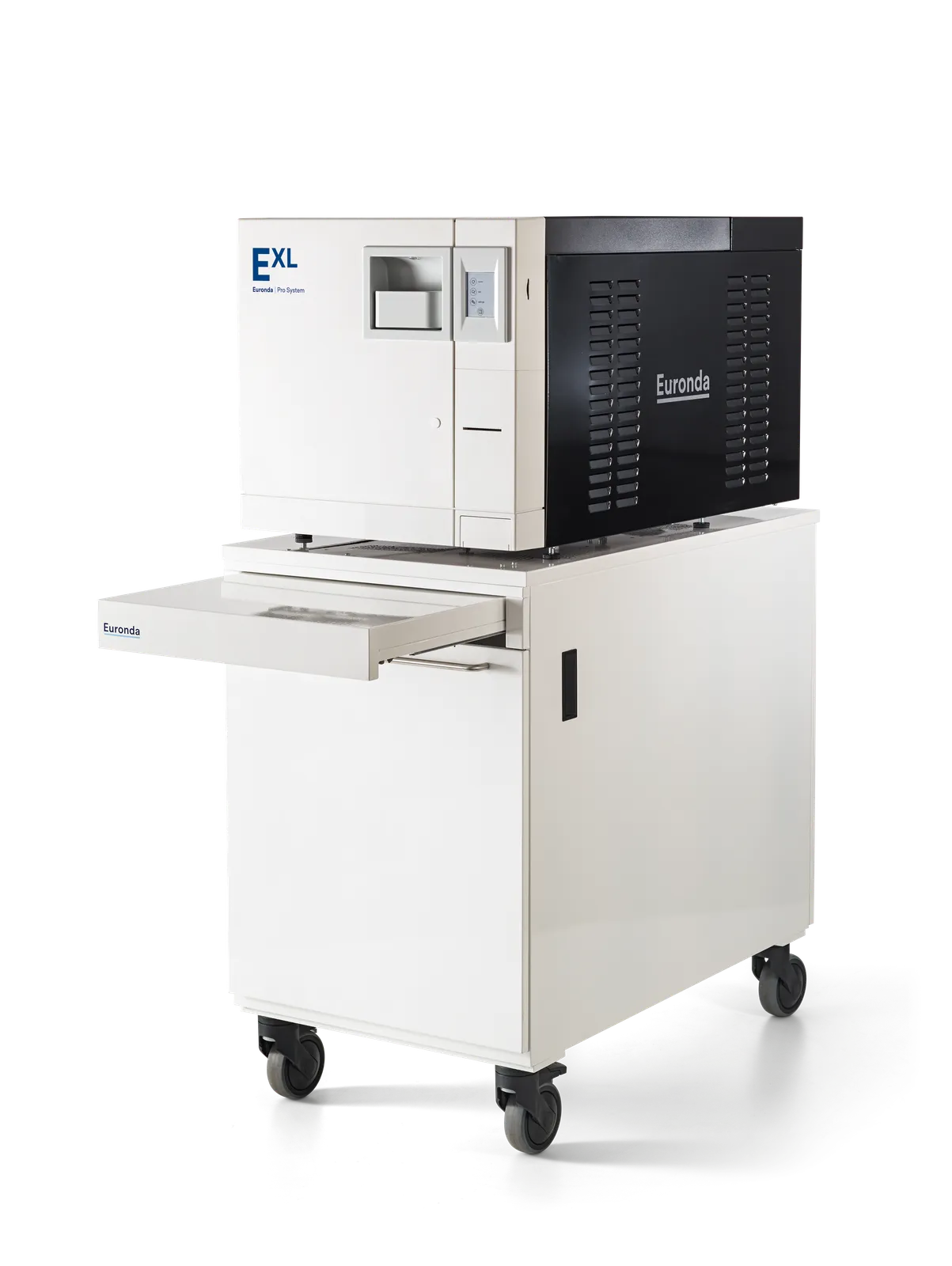

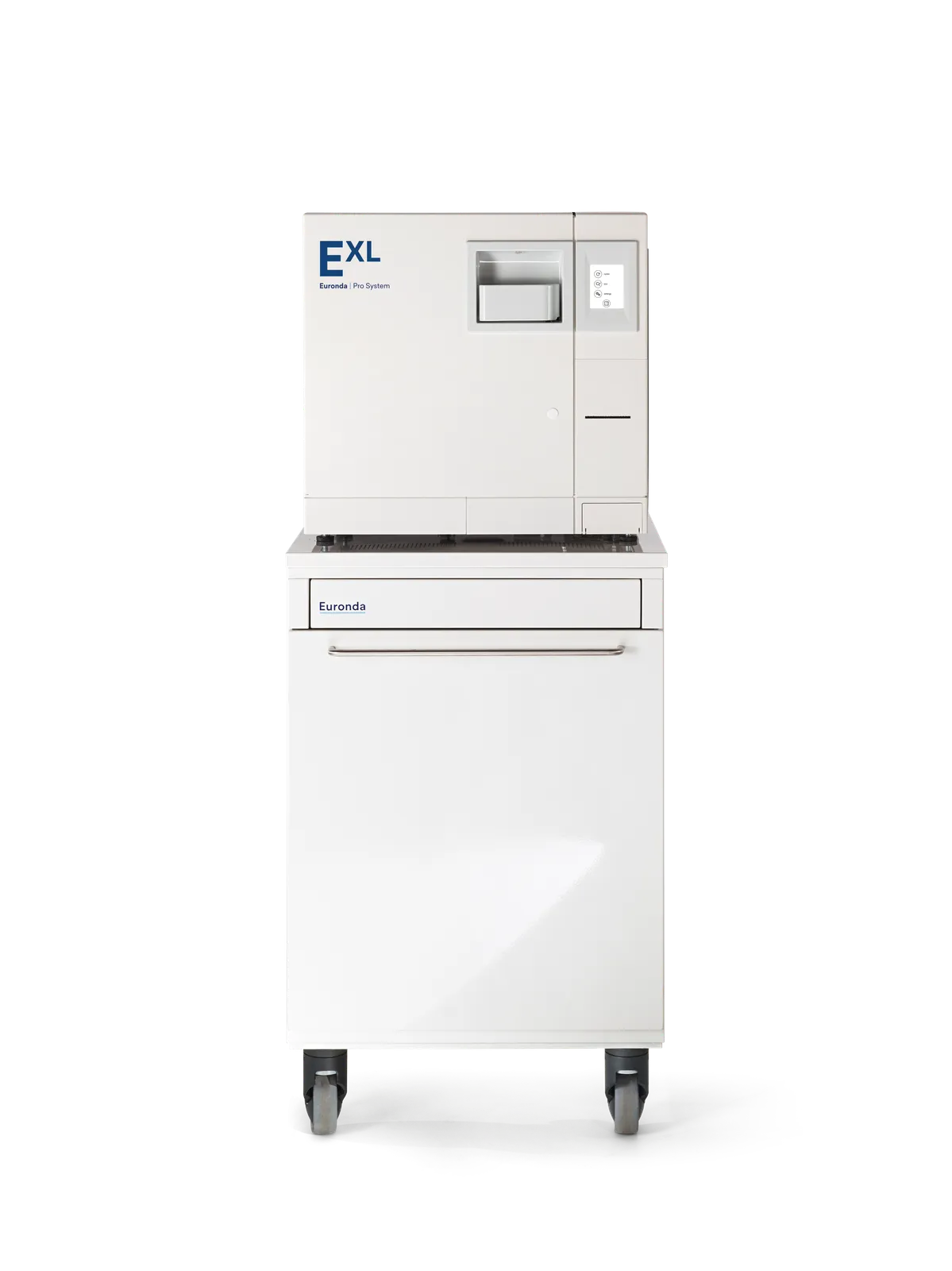

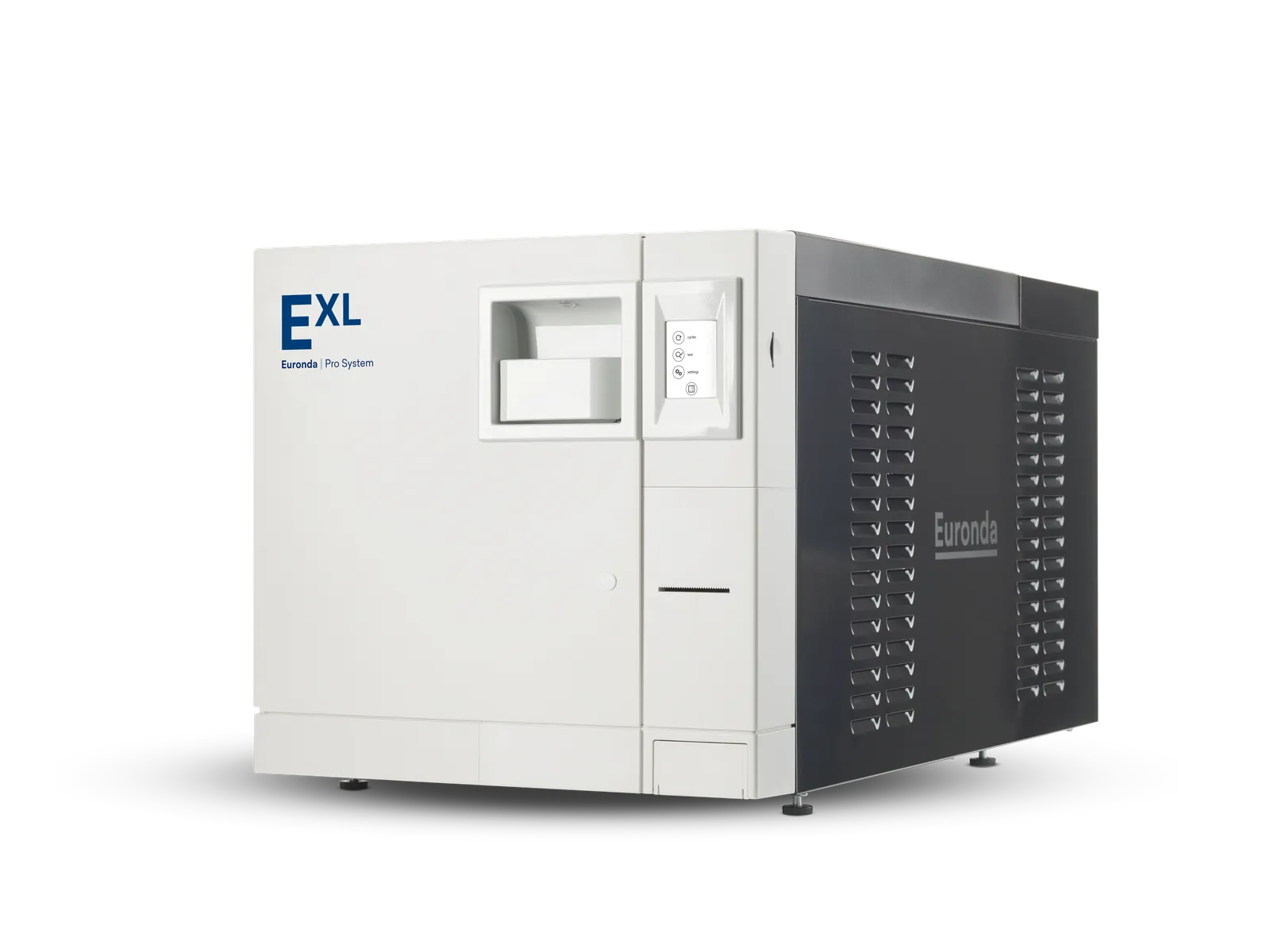

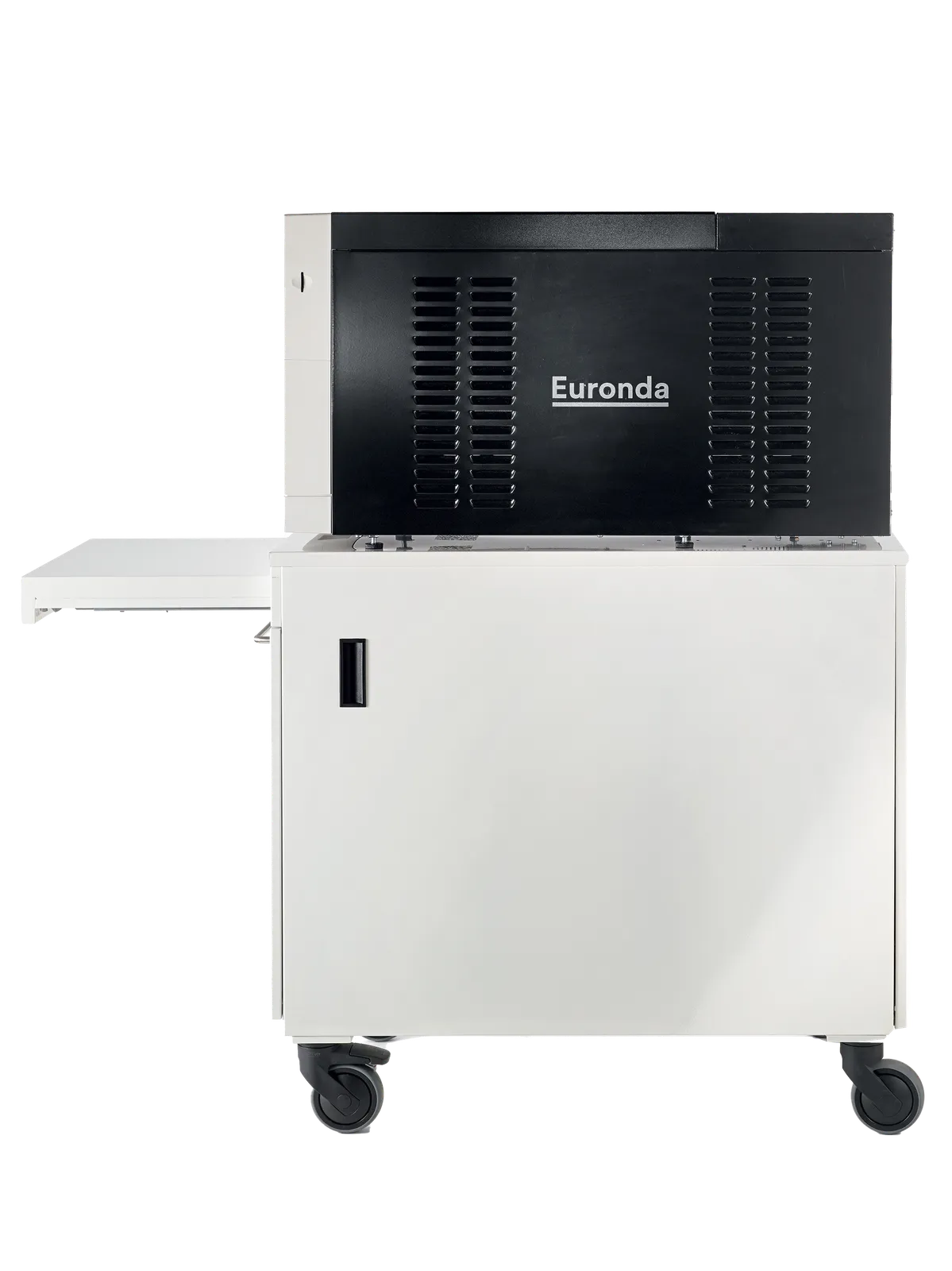

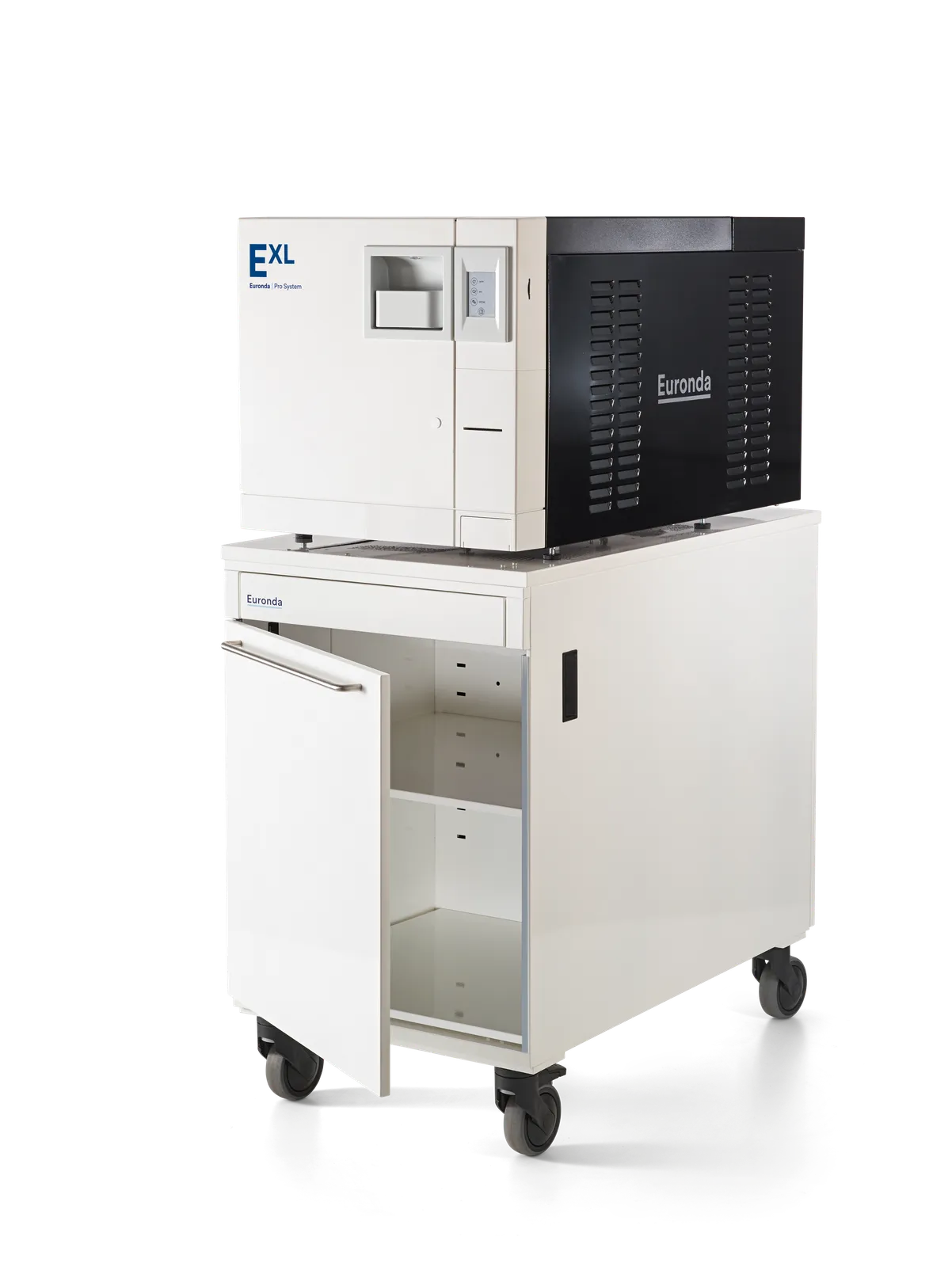

Euronda Autoclave EXL 29L
EurondaSpacious, optimised and eco-friendly: EXL is designed to meet the needs of practices with a high patient turnover thanks to its increased load capacity.
- Dimensions
- 46 x 45.5 x 85.5 cm (WxHxD)
- Weight
- 62 kg (empty machine with tray holders and trays)
- Chamber capacity
- 29 L
- Power consumption
- 3200 W
Overview
What it does.
Spacious, optimised and eco-friendly: EXL is designed to meet the needs of practices with a high patient turnover thanks to its increased load capacity. The large 29-litre chamber can hold up to 5 x 55 cm trays (+17 cm compared to a 24-litre autoclave) with 85 cm more total load capacity than standard. EXL offers the possibility to select 5 different B cycles and, upon entering a password, 2 S and N cycles. In addition to cycles, tests can also be programmed. Traceability is ensured by the standard SD card and Ethernet connection and the possibility of installing 2 different optional printers at any time. The control systems and functionalities of Euronda Pro System autoclaves guarantee safe processes and results over time: the Inspection System allows easy and frequent cleaning; the Dirt Control System separates clean and dirty water flows and allows dirt to drain easily from the hydraulic circuit; the conductivity meter constantly monitors water quality; and the air-water separator optimises pump operation.
Key features
What makes it different.
85 cm more total load capacity than standard
5 cycles of type B, plus 2 cycles of types S and N (password-protected)
Programmable tests in addition to cycles
Standard SD card and Ethernet connection for traceability
Compatible with 2 types of optional printers

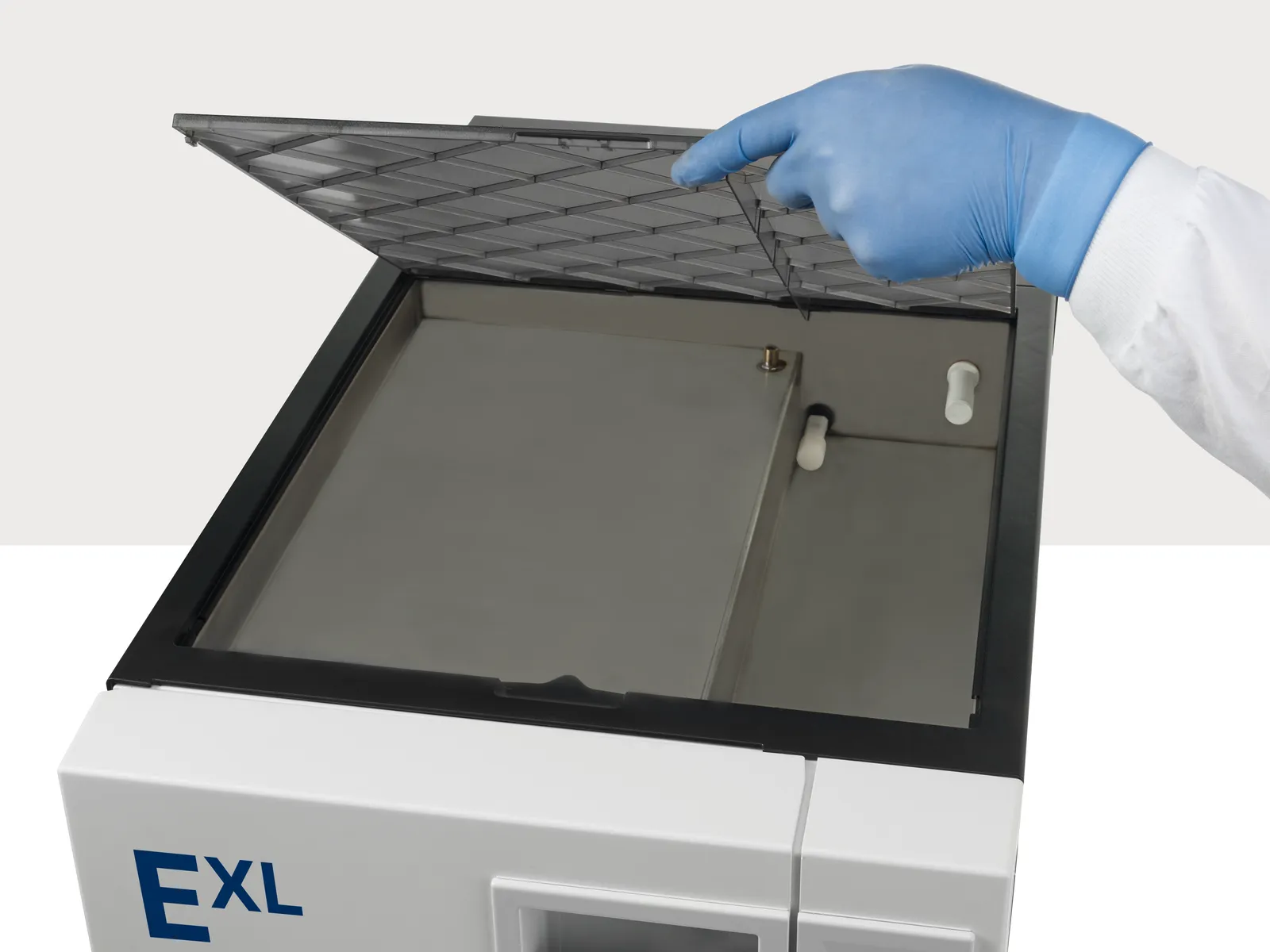

Inspection System for easy and frequent cleaning
Dirt Control System separating clean and dirty water flows
Conductivity meter for constant water quality monitoring
Air-water separator to optimise pump operation
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Classification | Medical Device Class IIb |
| Dimensions | 46 x 45.5 x 85.5 cm (WxHxD) |
| Weight | 62 kg (empty machine with tray holders and trays) |
| Chamber capacity | 29 L |
| Supply voltage | 230 V / 50/60 Hz |
| Power consumption | 3200 W |
| Water consumption | 0.9 L |
| Connectivity | Ethernet, SD card and E-Memory software (included) |
| CE Ref | SSU\X30L2019 |
