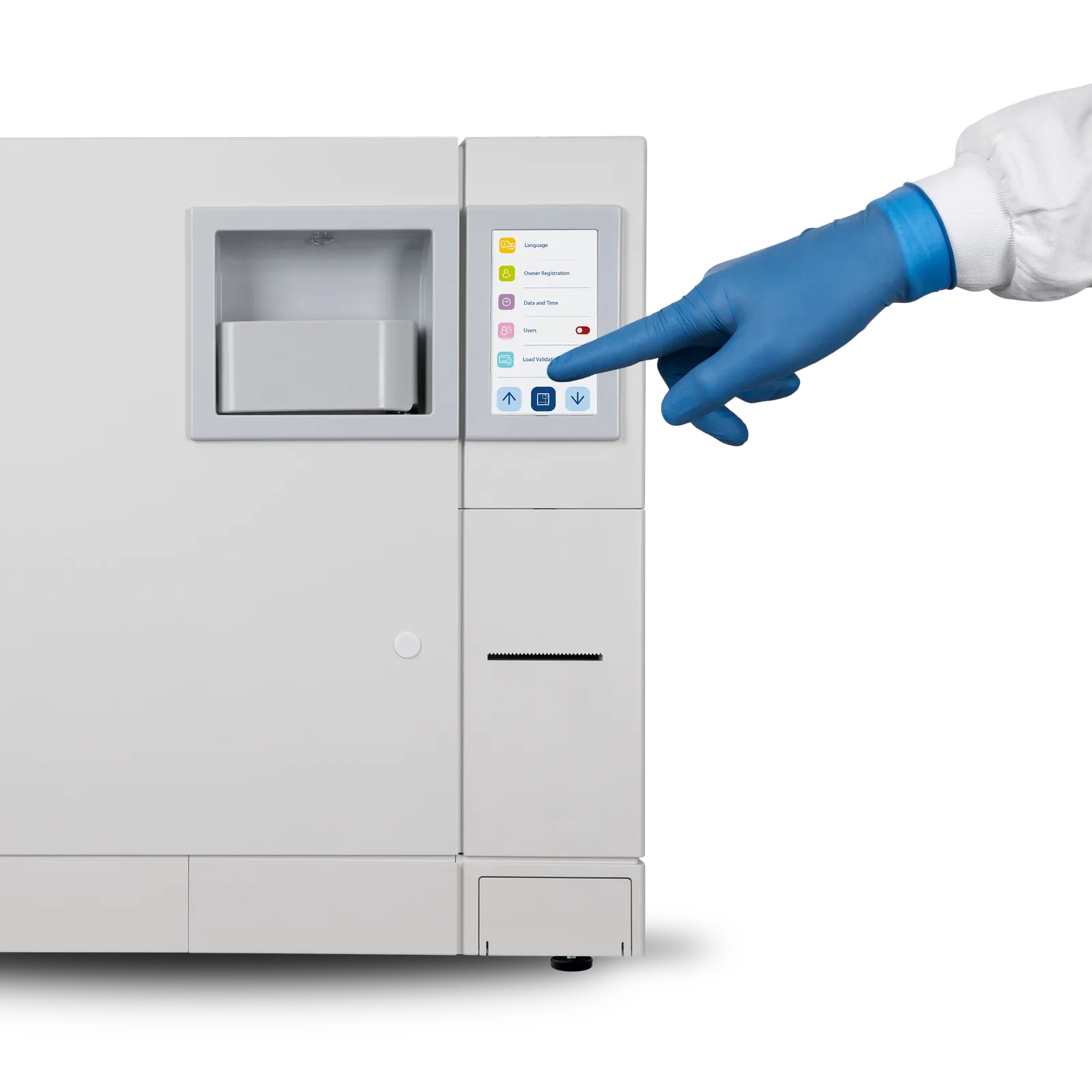

4.3" colour display with intuitive interface
Euronda Autoclave E9 24L
EurondaImmediate, efficient and reliable: E9 enables the complete and connected management of sterilization data with the best digital and paper-based traceability systems.
- Dimensions
- 46 x 43.5 x 61 cm (WxHxD)
- Weight
- 47.5 kg (empty machine with basket and trays)
- Chamber capacity
- 24 L
- Power supply
- 230 V / 50/60 Hz
Overview
What it does.
Immediate, efficient and reliable: E9 enables the complete and connected management of sterilization data with the best digital and paper-based traceability systems. Its intuitive interface, with a 4.3" colour display, simplifies and speeds up daily operations. E9 offers the option of selecting 5 different B cycles and, after entering a password, 2 S and N cycles. In addition to cycles, tests can also be programmed to optimise the use of time. Thanks to the SD card and Ethernet connection (both standard), all cycle data can be transferred and conveniently managed on a PC via the free E-Data software, while the optional WiFi enables full digital traceability. It is also possible to install 3 different types of optional printers at any time, for printing receipts or thermal labels containing data or barcodes. The control systems and advanced functionalities common to all Euronda Pro System autoclaves guarantee safe processes and results over time: the Inspection System allows easy and frequent cleaning; the Dirt Control System separates clean and dirty water flows, draining dirt from the hydraulic circuit; the conductivity meter constantly monitors water quality; while the air-water separator optimises pump operation.
Key features
What makes it different.
5 cycles of type B, plus 2 cycles of types S and N (password-protected)
Programmable tests to optimise time usage
Standard SD card and Ethernet connection for cycle data transfer via E-Data software
Optional WiFi for full digital traceability

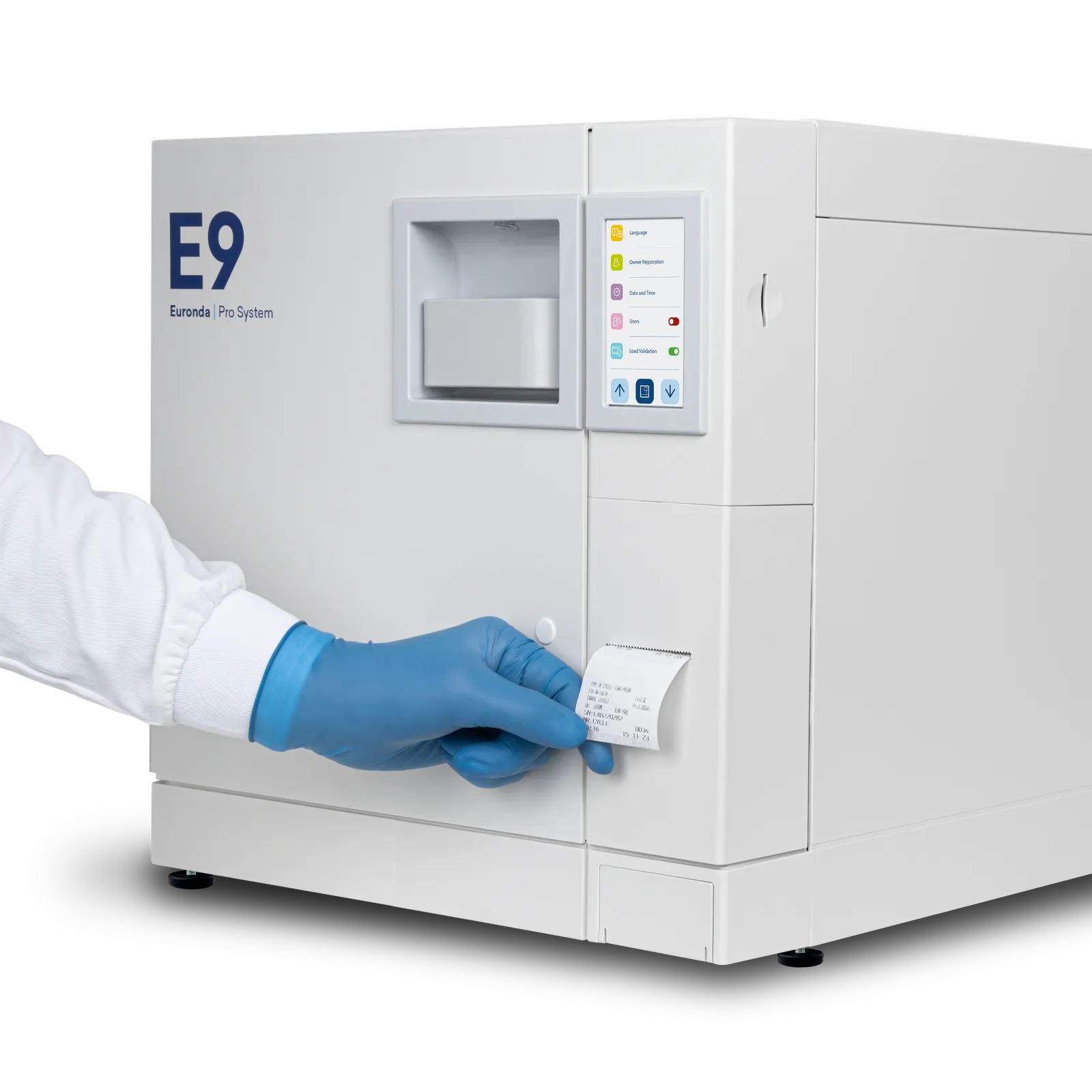

Compatible with 3 types of optional printers (receipts or thermal labels with data/barcodes)

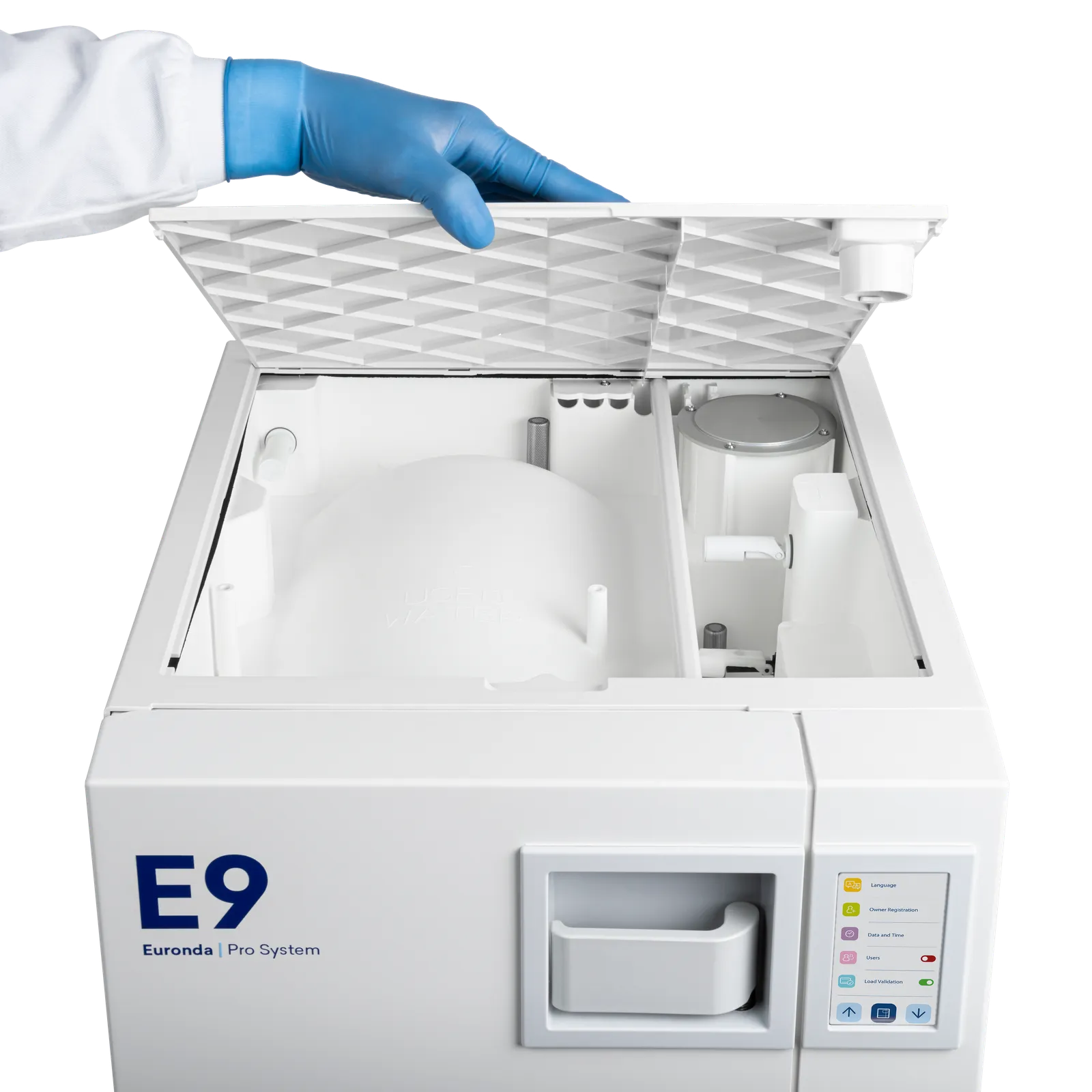

Inspection System for easy and frequent cleaning
Dirt Control System separating clean and dirty water flows
Conductivity meter for constant water quality monitoring
Air-water separator to optimise pump operation
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Classification | Medical Device Class IIb |
| Dimensions | 46 x 43.5 x 61 cm (WxHxD) |
| Weight | 47.5 kg (empty machine with basket and trays) |
| Chamber capacity | 24 L |
| Power supply | 230 V / 50/60 Hz |
| Power consumption | 2300 W |
| Water consumption | 0.3 L |
| Connectivity | Ethernet, SD card, E-Memory and E-Data software (included); WiFi (optional) |
| CE Ref | SSU\M24L2023 |
Documentation
Downloads.
Product enquiry
Plan your next step.
Explore this product with our team.
