7" colour display with coloured LED next to the handle

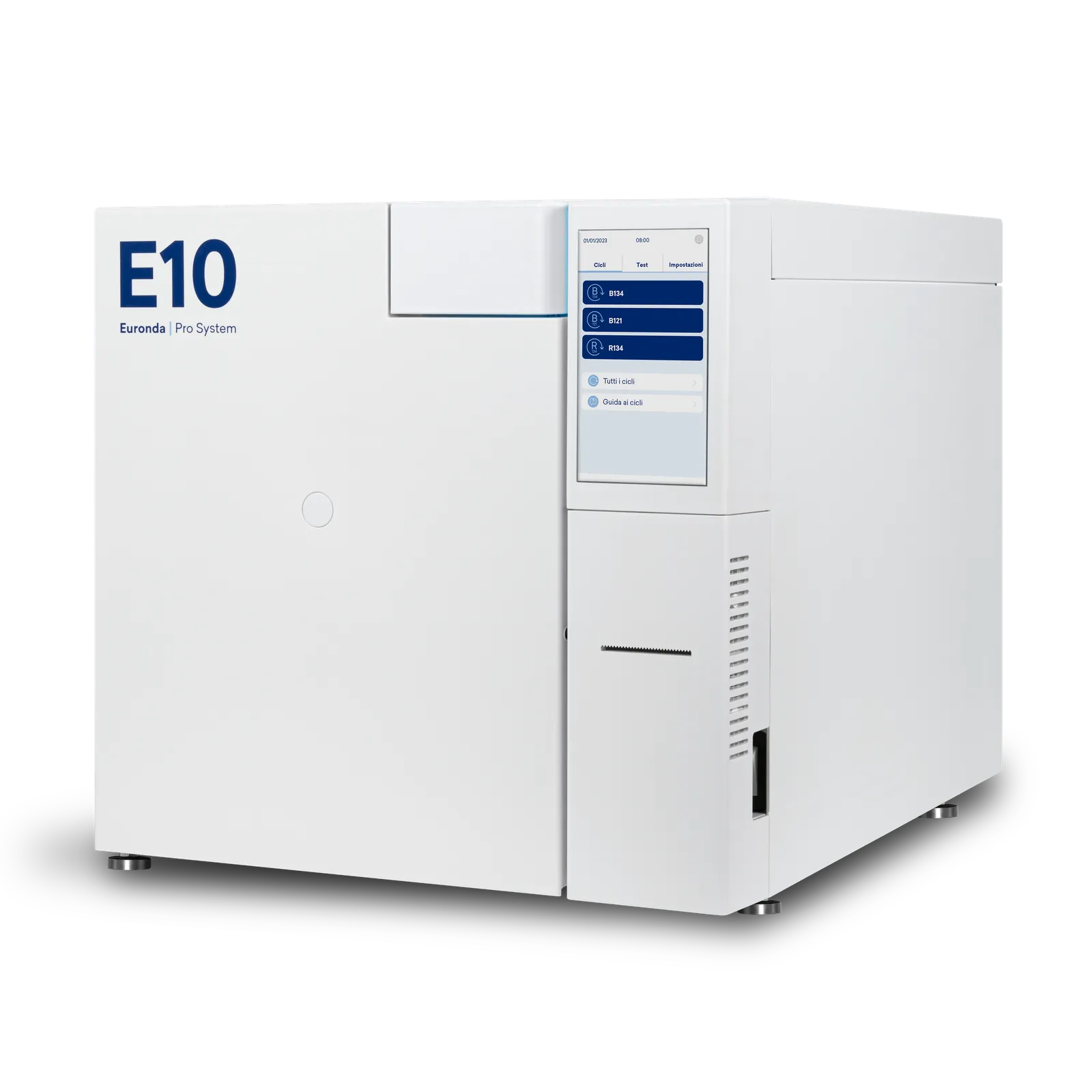

Euronda Autoclave E10 18L/24L
EurondaIntuitive, traceable and high-performance: E10 enables you to manage your sterilization data in a comprehensive way, thanks to exceptional digital and paper-based traceability systems.
- Dimensions
- 46 x 45.5 x 61 cm (WxHxD)
- Weight
- 47.5 kg (18 L) / 50.5 kg (24 L) — empty machine with tray holder and trays
- Chamber capacity
- 18 L or 24 L
- Power supply
- 230 V / 50/60 Hz
Overview
What it does.
Intuitive, traceable and high-performance: E10 enables you to manage your sterilization data in a comprehensive way, thanks to exceptional digital and paper-based traceability systems. The intuitive interface with 7" colour display and coloured LED next to the handle simplify and speed up day-to-day operations. E10 enables you to select 5 different B cycles and, after entering a password, 1 S and N cycle. In addition to cycles, tests can also be scheduled to optimise uptime. Thanks to the USB and Ethernet connection (both standard), all cycle data can be transferred and conveniently managed on a PC via the free E-Data software, while the standard WiFi enables full digital traceability. It is also possible to install 3 different types of optional printers, at any time, to print receipts and thermal labels with data or barcodes. With E10, everything is designed to be within reach: the printer compartment is easily accessible, the air filters can be removed quickly with a simple click for cleaning or replacing, and the front door adjustment and release operations are simple and immediate. The control systems and advanced features common to all Euronda Pro System autoclaves guarantee safe processes and results over time: the Inspection System allows easy and frequent cleaning; the Dirt Control System separates clean and dirty water flows, draining dirt from the hydraulic circuit; the conductivity meter constantly monitors water quality; while the air-water separator optimises pump function.
Key features
What makes it different.
5 cycles of type B, plus 1 cycle of types S and N (password-protected)
Scheduled tests to optimise uptime
Standard USB, Ethernet and WiFi for full digital traceability via E-Data software
Compatible with 3 types of optional printers (receipts or thermal labels with data/barcodes)
Easily accessible printer compartment

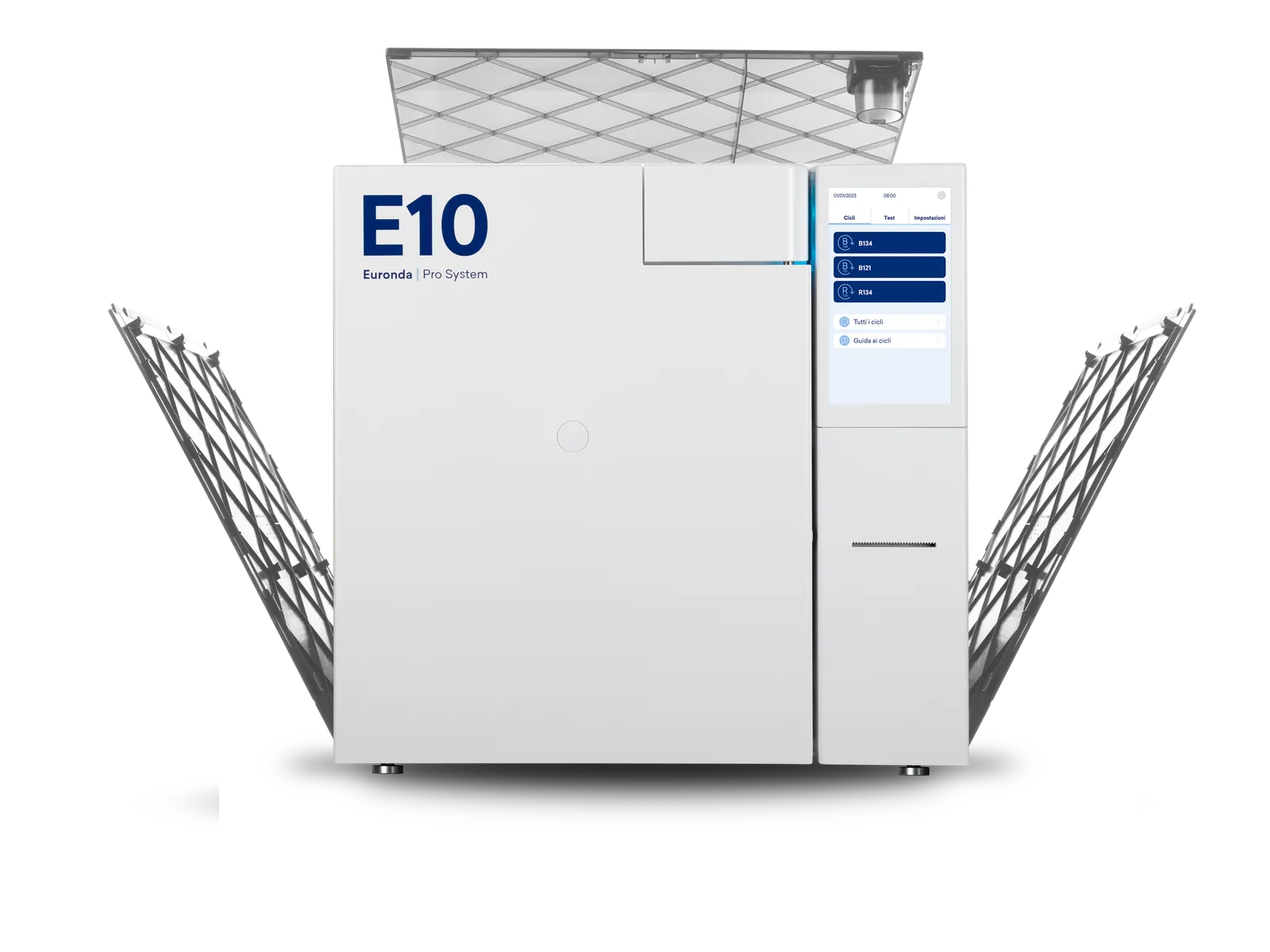

Quick-release air filters for cleaning or replacing

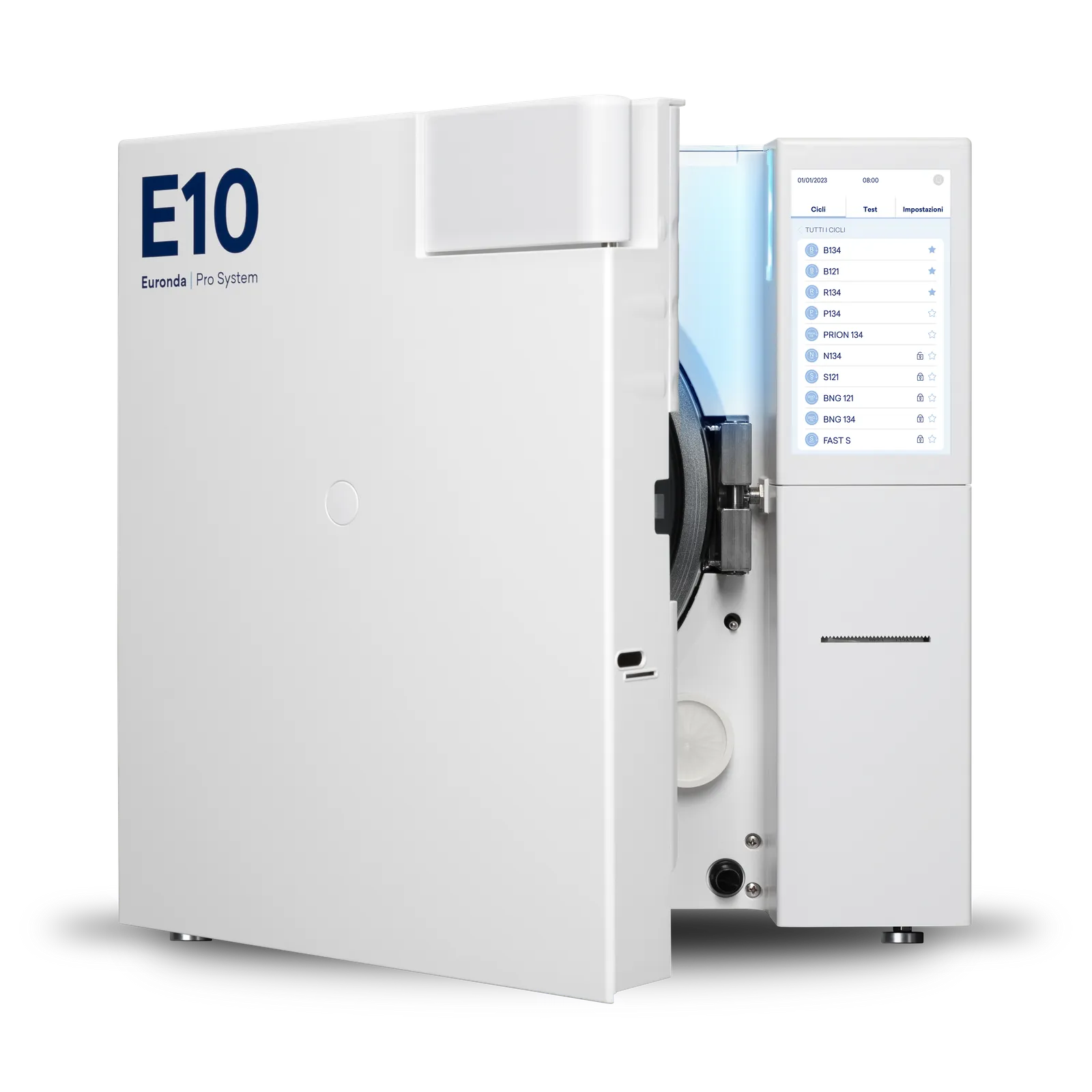

Simple and immediate front door adjustment and release
Inspection System for easy and frequent cleaning
Dirt Control System separating clean and dirty water flows
Conductivity meter for constant water quality monitoring
Air-water separator to optimise pump function
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Classification | Medical Device Class IIb |
| Dimensions | 46 x 45.5 x 61 cm (WxHxD) |
| Weight | 47.5 kg (18 L) / 50.5 kg (24 L) — empty machine with tray holder and trays |
| Chamber capacity | 18 L or 24 L |
| Power supply | 230 V / 50/60 Hz |
| Power consumption | 2300 W |
| Water consumption | 0.3 L |
| Connectivity | Ethernet, USB, WiFi, E-Memory and E-Data software (included) |
| CE Ref | SSUT\18L2023 (18L) / SSUT\24L2023 (24L) |
