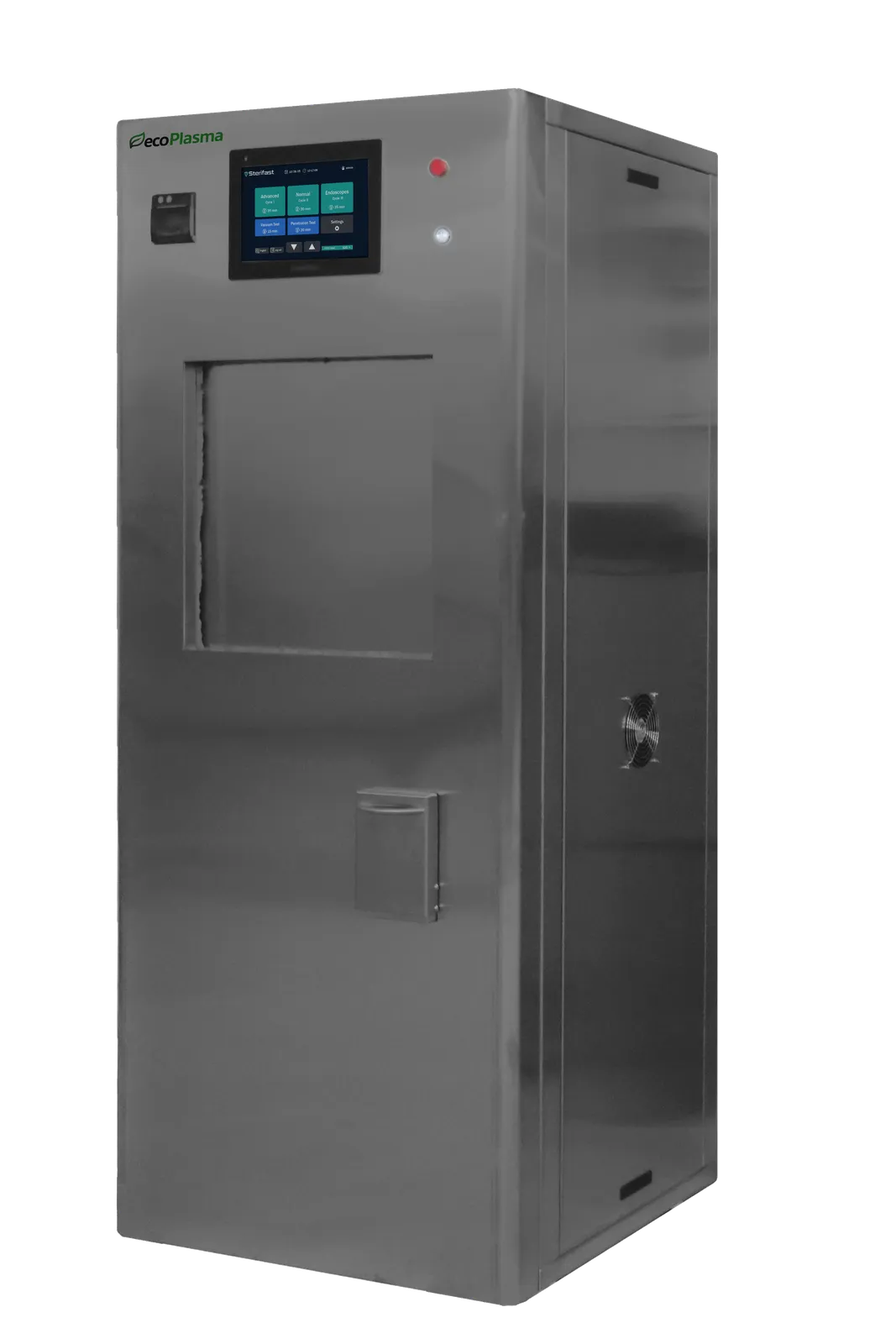

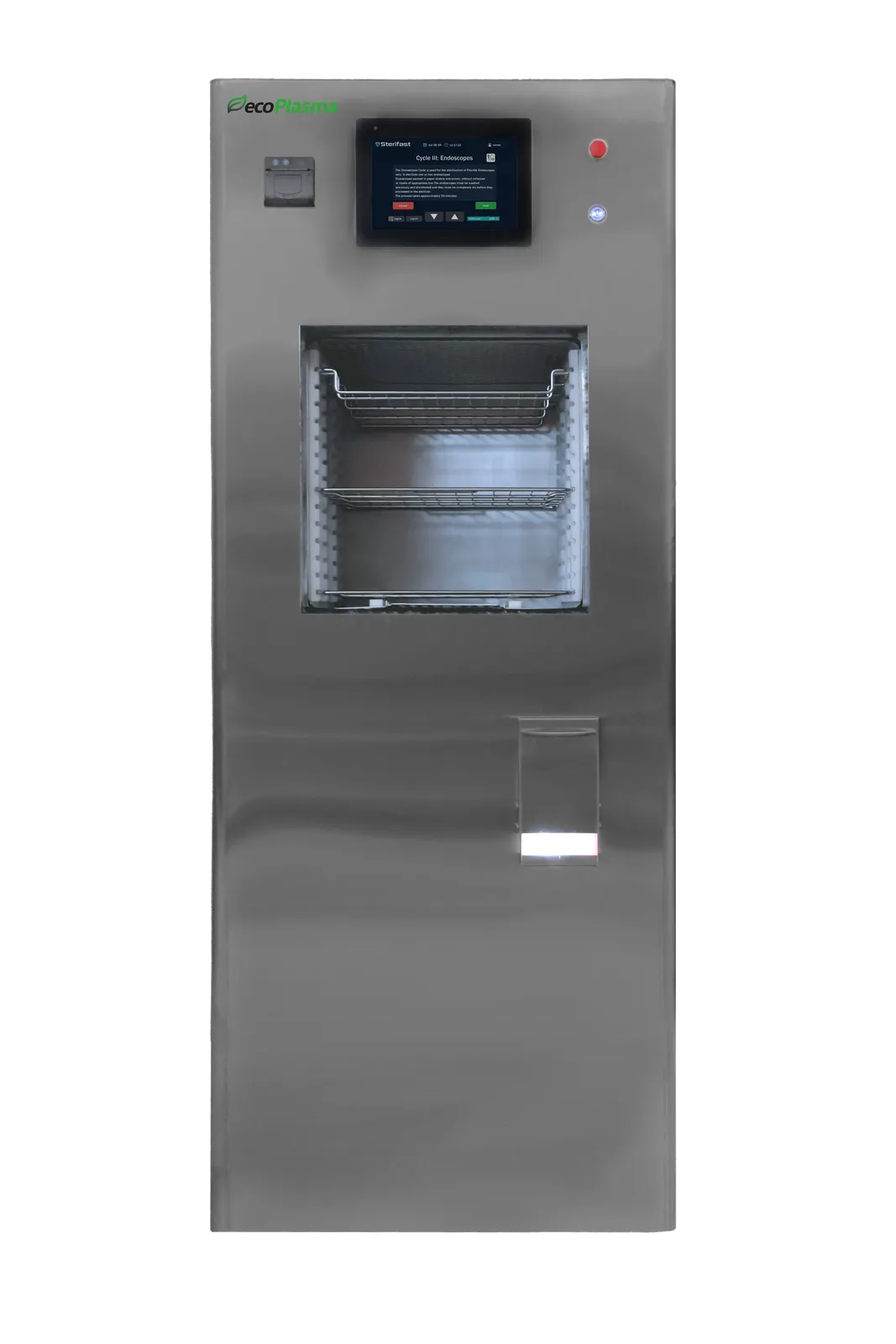

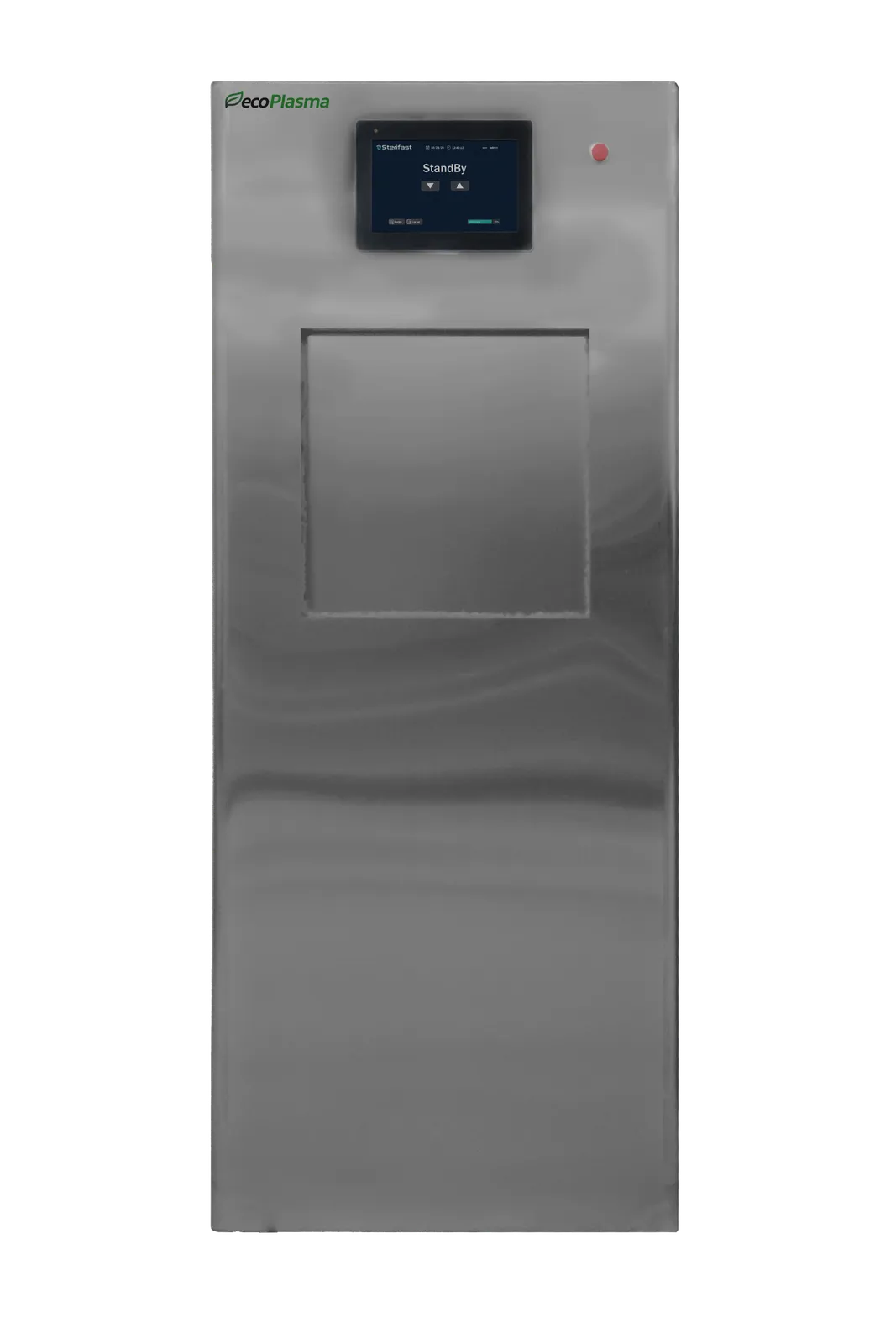

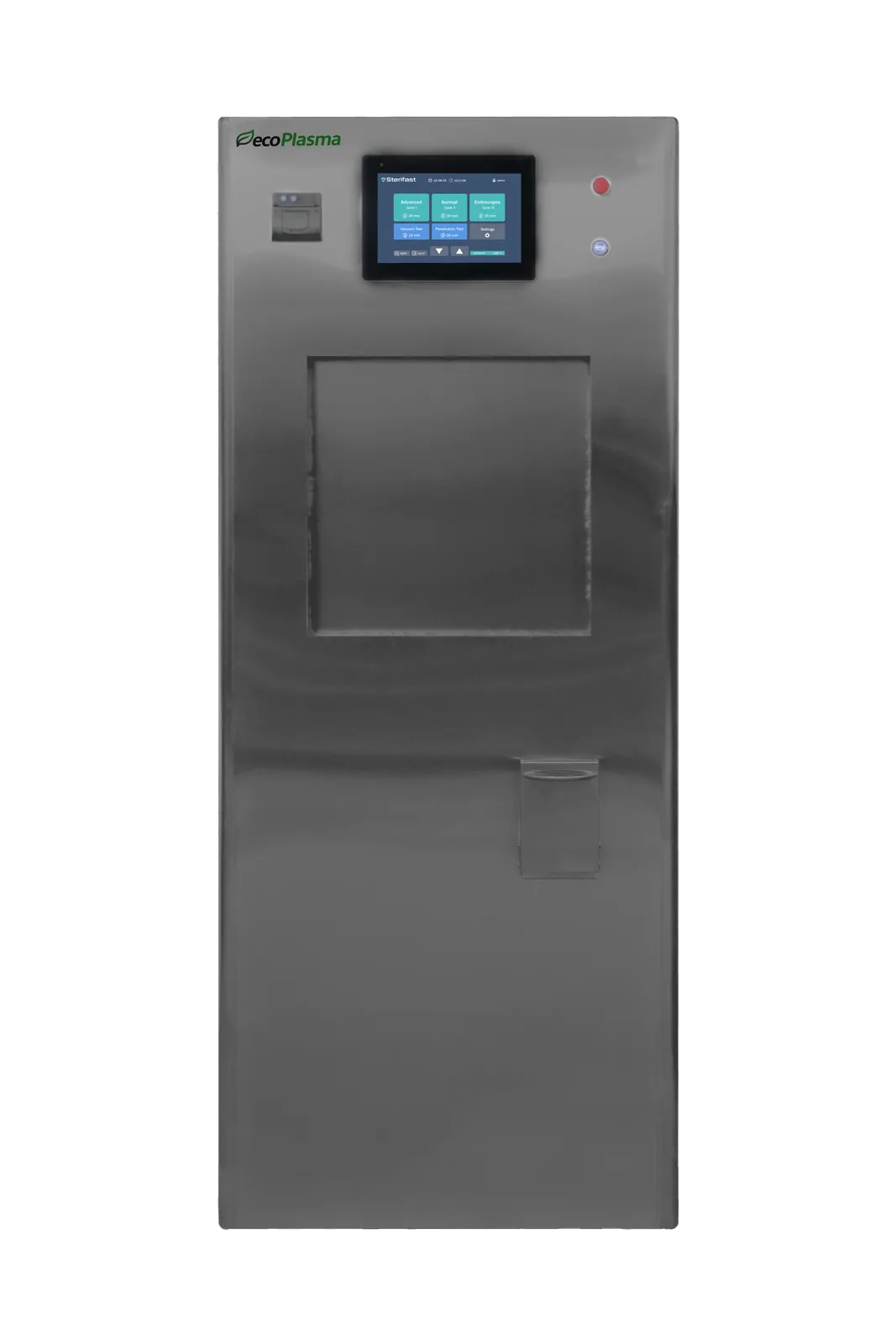

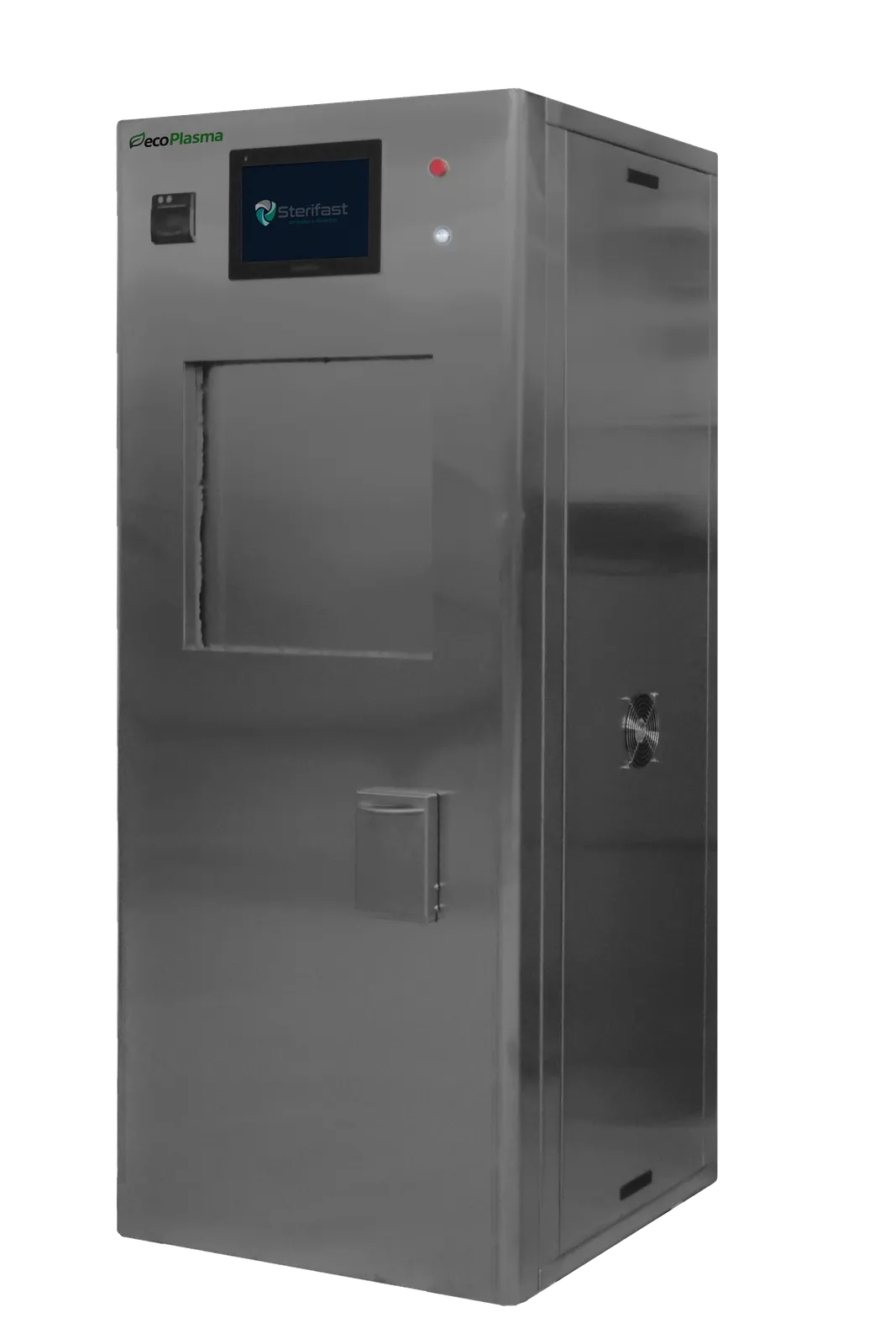

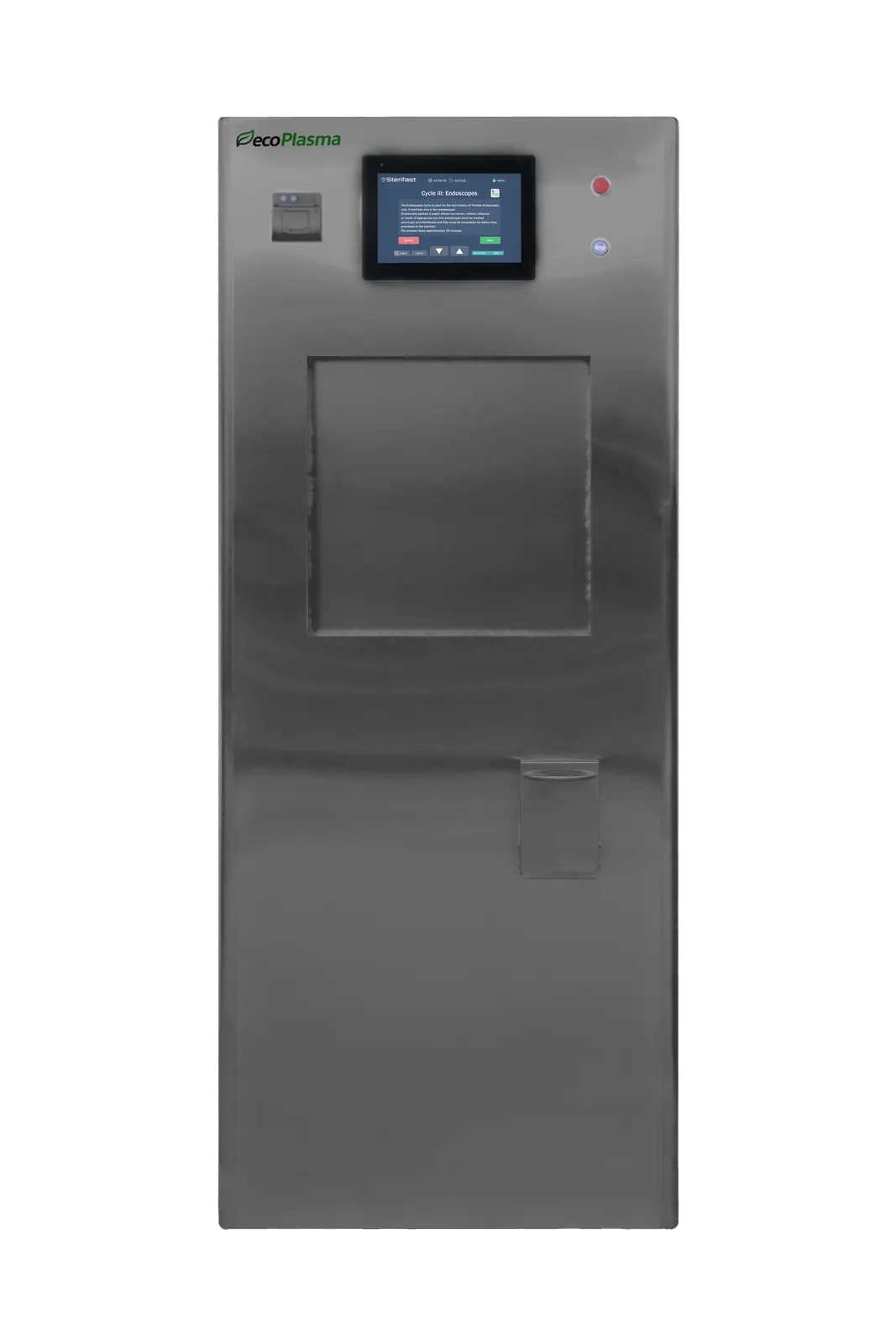

Sterifast EcoPlasma E110 Sterilizer

Fully automatic single or double-door configurations, made of durable aluminum with advanced interlock safety system

Intelligent Sliding Door Control System (I_SD_C): prevents door operation during active/failed/interrupted cycles, 10-minute closing countdown, acoustic warning, anti-pinch reversal, energy-saving logic

Pedal-activated sliding door system for hands-free convenience

Cycle types: Advanced (hollow loads), Normal (non-hollow loads), Endoscope (flexible and rigid endoscopes), Free (custom made)

Test cycles: Test I (penetration), Test II (leakage), Test III (leakage and penetration)

Efficient penetration in long lumens (10 m extension with 1 mm diameter, both ends open; 3 m extension with 1 mm diameter, one end open)

Routine control with H₂O₂ biological and chemical indicators; compatible with Lumen Kit (process challenge device)

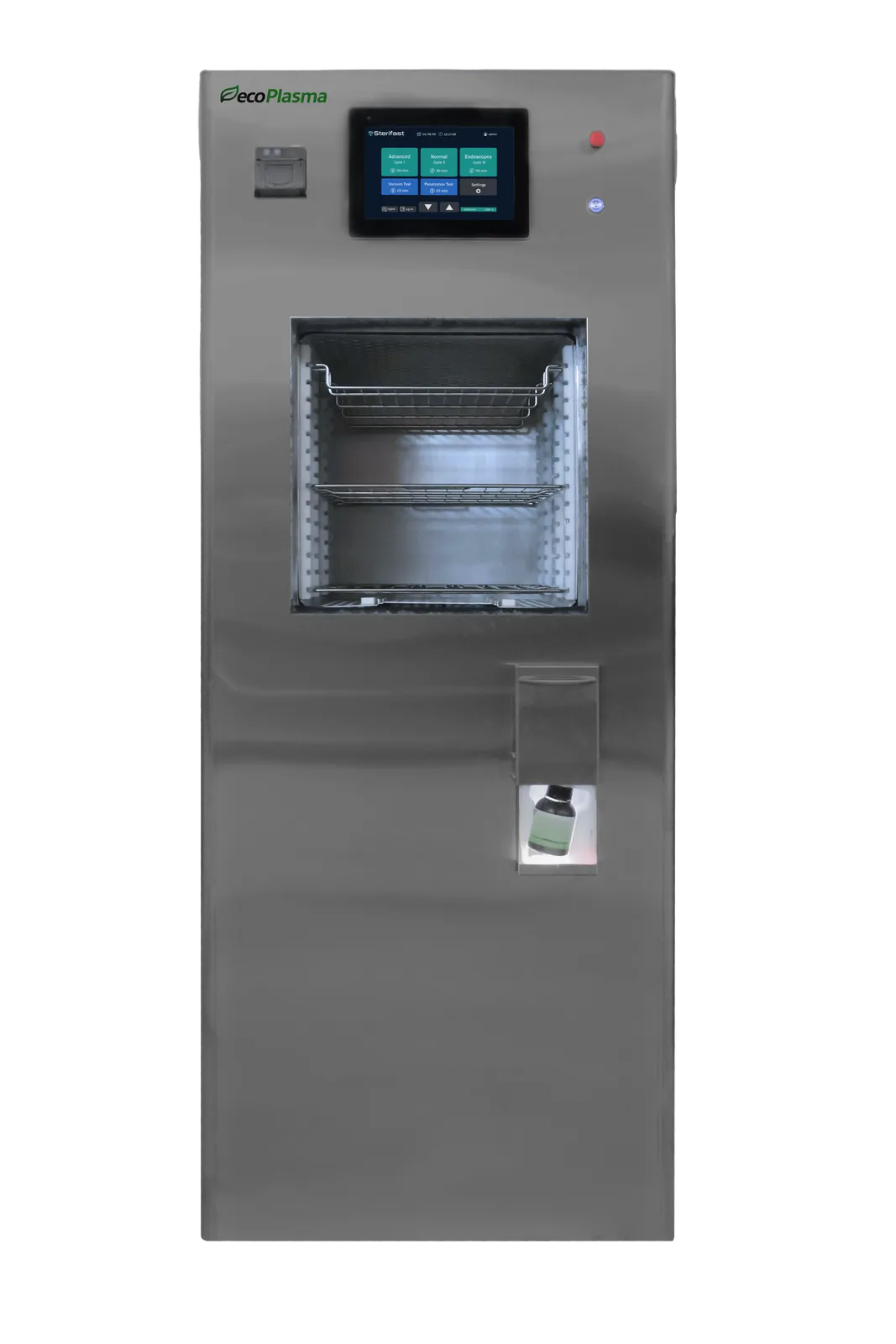

Automated sterilizing agent refilling: no operator contact with chemical, sterilizing agent tank preserves properties, drawer with bottle holder, automatic perforation, RFID bottle recognition

Recharge bottles supplied in sealed plastic bag (leak verification), 18-month shelf life, boxes of 4 bottles

Sterilizing agent shippable by air due to low H₂O₂ concentration (Sterifast is a Known Consignor of Air Cargo, No. PT/KC/01-00006)

7" touch screen HMI (one or two), Windows operating system, Ethernet communication, Phoenix Automation and control board

Cycle data printout (phases, phase time, total time, pressure, temperature, H₂O₂ concentration), remaining time display, "Plasma OK" indication, real-time graphs, cycle archive with date search

USB connection; data transfer to CSSD traceability system via network or USB (STV files)

Sterifast VIEWER PC software: links graphic cycles to load/department/operator, saves PDF, monitors temperature/pressure, customizable desktop

Supervision Software for technicians, with remote software option (available for distributors under agreement)

Display/printout in selectable languages (EN, PT, ES, DE, FR, IT, IND, PL), translatable to local languages

Differentiated acoustic signals (intermittent = correct cycle, continuous = failed cycle)

Automatic preheating of the load and automatic chamber heating with energy-saving features

Sterifast double-stage High Vacuum Pump with oil condenser/separator, automatic pre-heating, high-efficiency condenser, large capacity molecular sieve, high-efficiency oil separator

High Voltage Plasma Generator located outside the sterilization chamber, no radiation damage to materials, equipped with temperature sensor

Safety systems: cycle-start conditions check, overheating/probe-failure detection, maximum temperature safety (chamber, vaporizer, each door), independent temperature control per element, HEPA filter 0.2 μm, no electromagnetic radiation, safe environment (residue level <1 ppm)

Easy installation: no water, compressed air, drain, or special ventilation required — just an electrical connection; mobile on four wheels

Validation possible under request according to ISO 14937

Suitable for surgical instruments, flexible endoscopes, laparoscopy boxes, ophthalmology/cardiology/MIS/neurosurgery/otolaryngology devices, electric scalpels, electric cables, optical fibers, and thermo-sensitive materials (max. 60°C) or materials normally sterilized at 121°C

Compatible packaging: polypropylene or polyethylene sterilization pouches, reels, and sheets

Patented Vaporization System (WO 008755/2009 A1, Patent No. PCT/PT000029/2007) and sterilizing agent refilling process (Patent No. PCT/PT2013/000025 - WO 2014/178740 A1)
