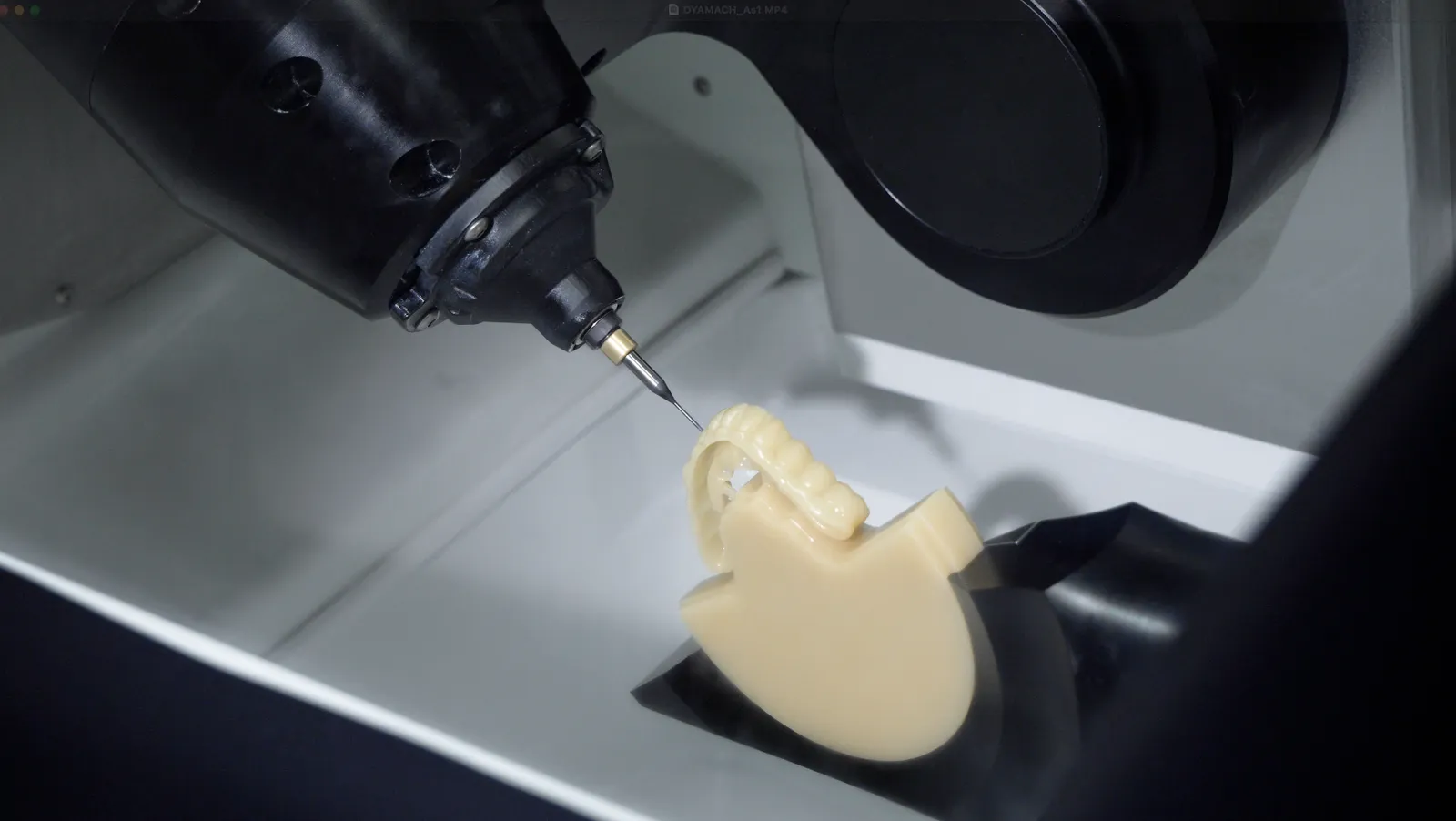

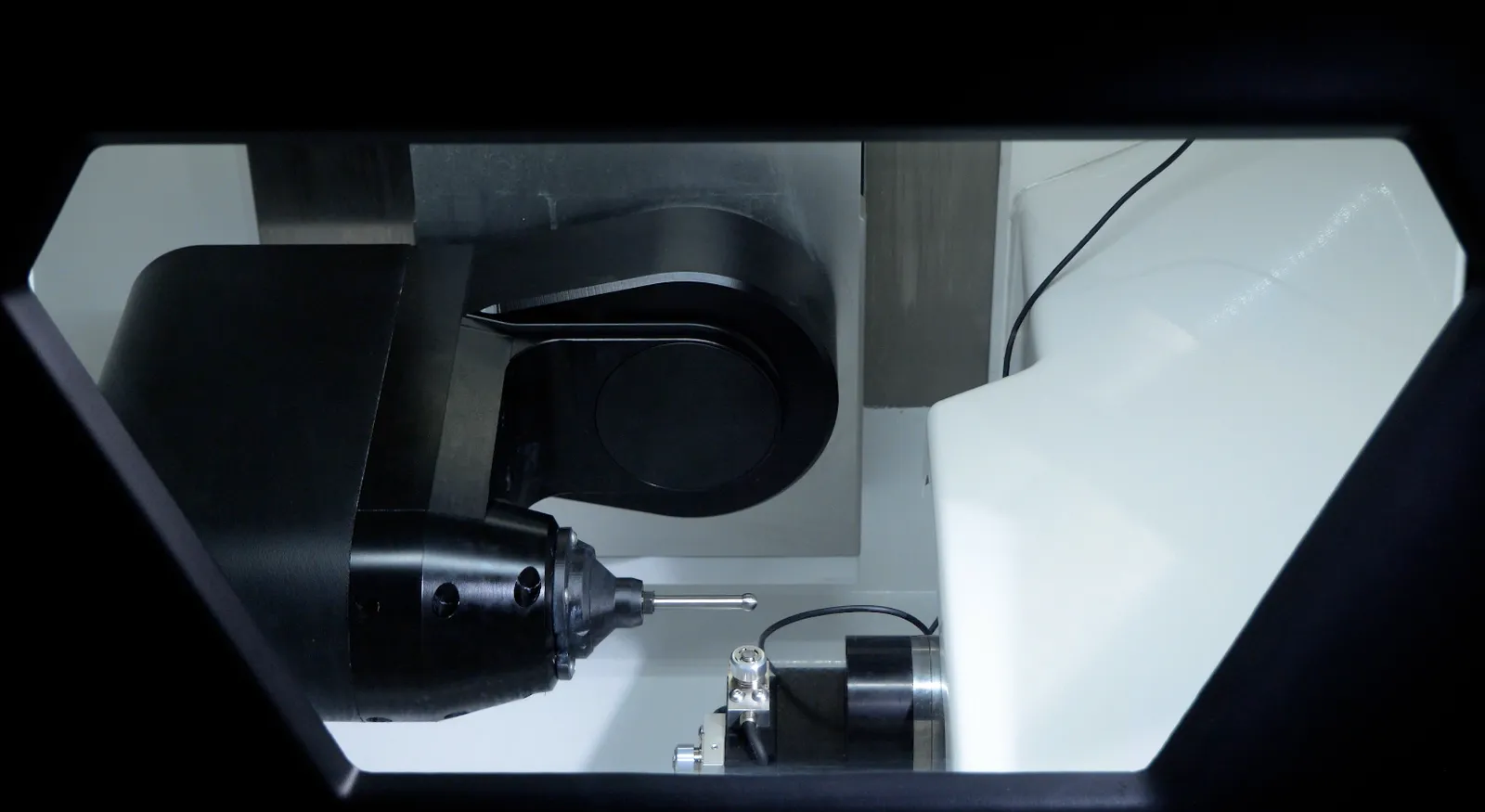

Tilting head spindle enabling innovative milling strategies and unprecedented machining angles
Made by us
Dental Equipment › Digital Dentistry
WEB-016
Dyamach Dental Milling Machines AS1

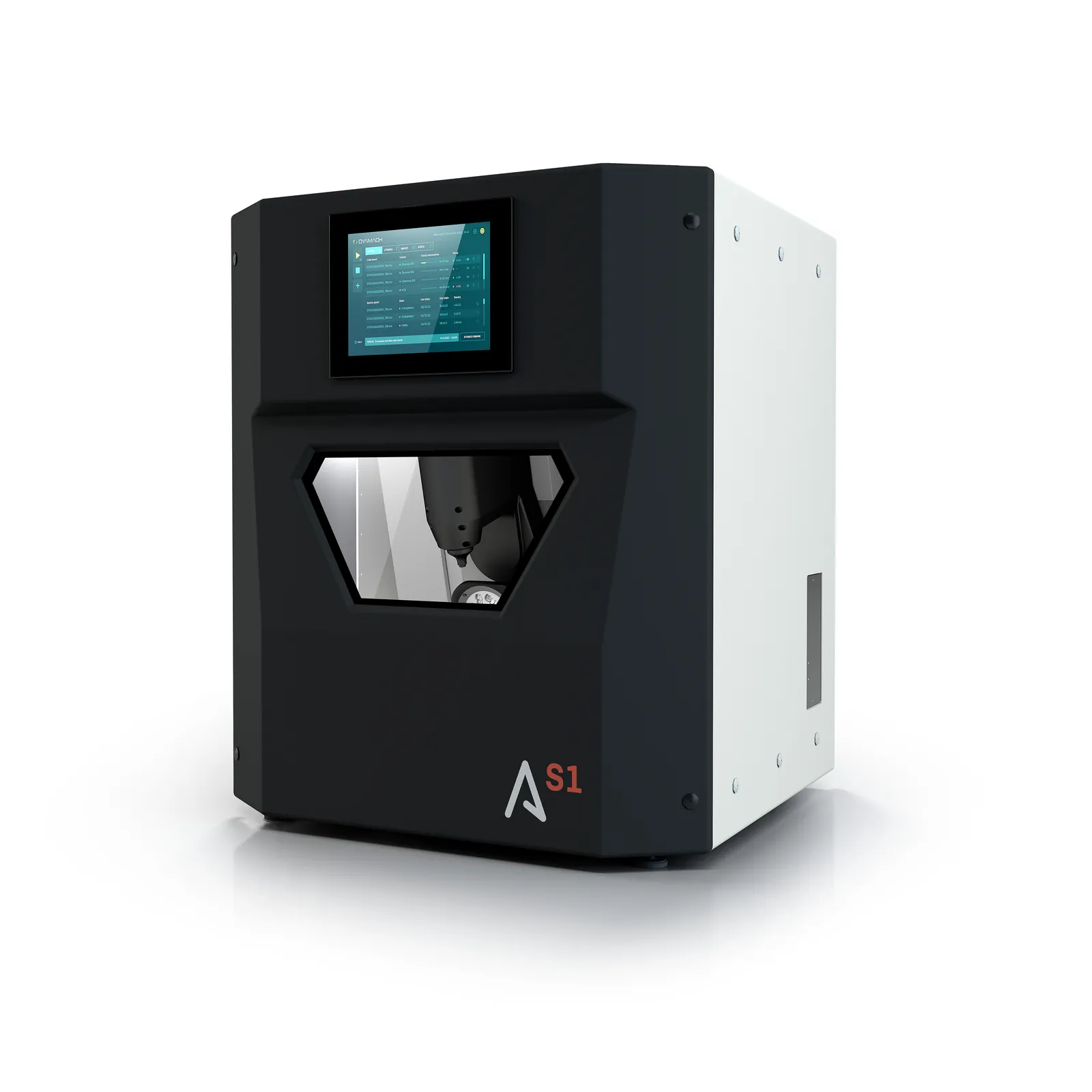

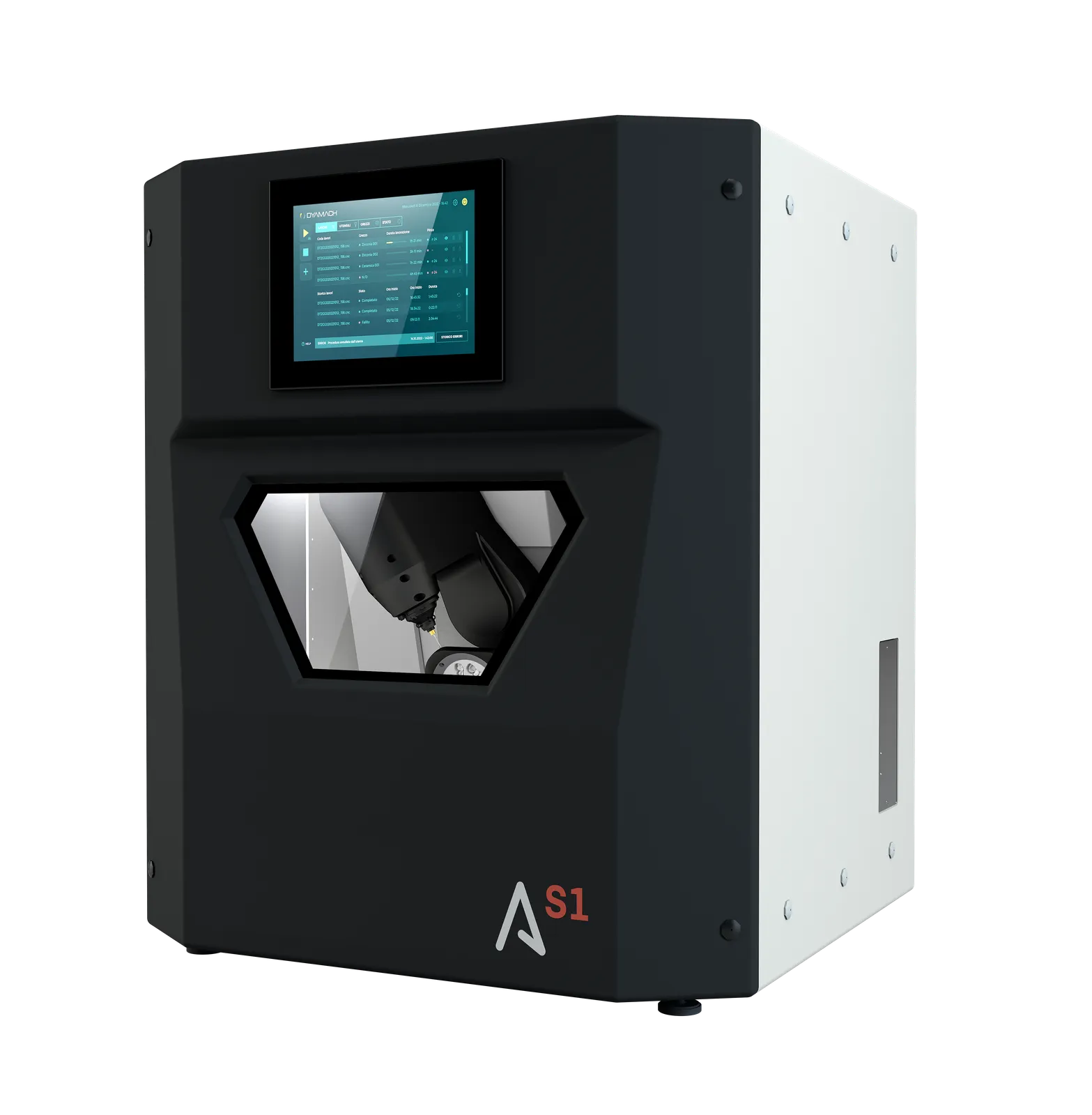

DyamachAS1 is a 5-axis milling machine incorporating original engineering solutions, capable of guaranteeing high performance for all types of material.
- Dimensions
- 86 x 78 x h103 cm (LxPxH)
- Weight
- 300 kg
- Power supply
- 230 V / 50/60 Hz
- Spindle power
- 1 kW
Overview
What it does.
AS1 is a 5-axis milling machine incorporating original engineering solutions, capable of guaranteeing high performance for all types of material. Equipped with a tilting head spindle, it allows the use of innovative milling strategies in accordance with the context. Precision and performance of tools are guaranteed also when machining soft and hard metals. The blank holder loading/unloading system, removable tool magazine, and the structure of the numerical control were designed specifically to optimise versatility and speed of execution in the laboratory.
Key features
What makes it different.
Suitable for both dry and wet machining of soft and hard metals
Quick clamping system ensuring precision of blank holder repositioning
SLM secondary machining capability, refining products from laser additive manufacturing
Patented sprinkler coolant management system, with flow automatically adapting to the machining process

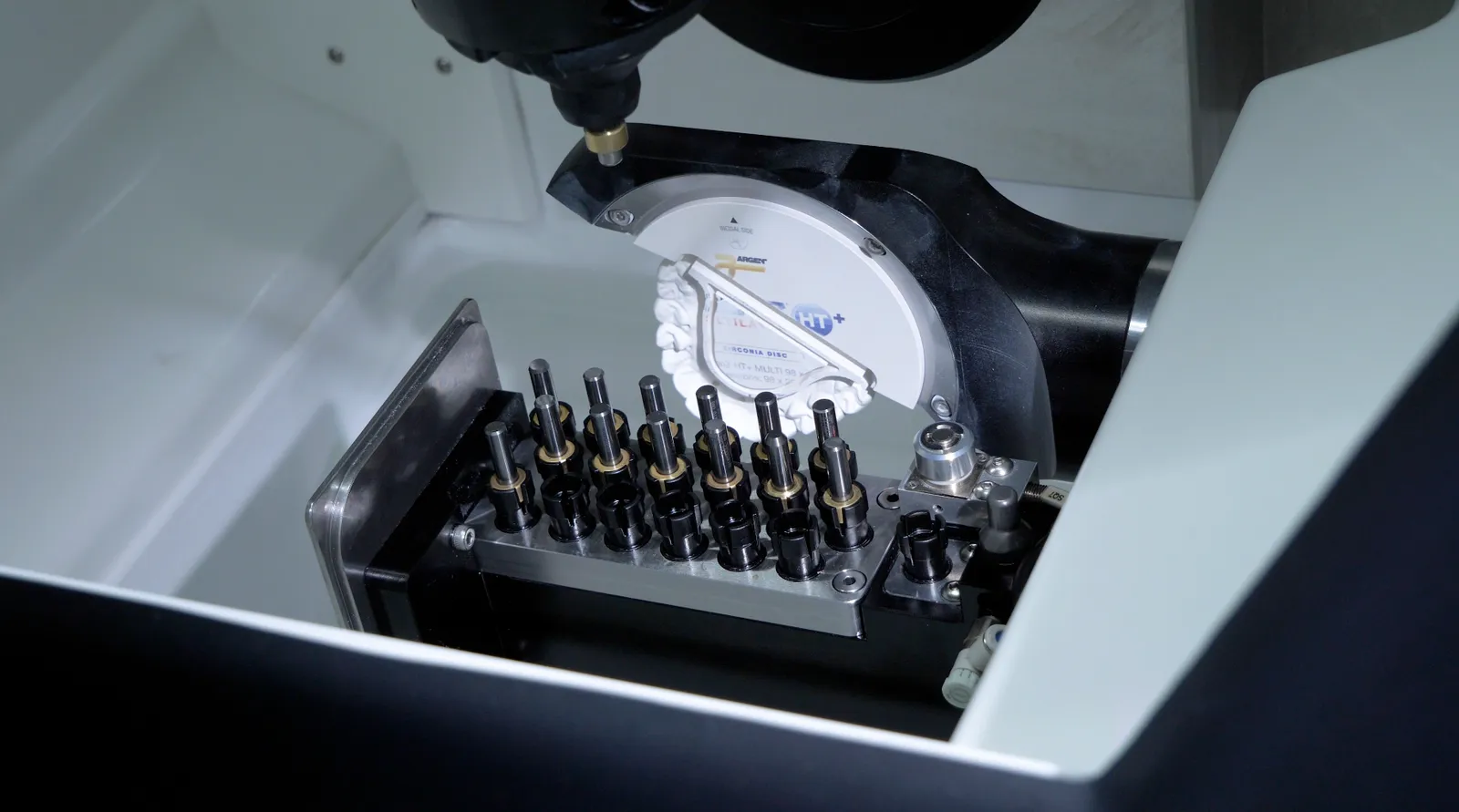

Removable rack-type tool magazine (18 tools)
Automatic calibration

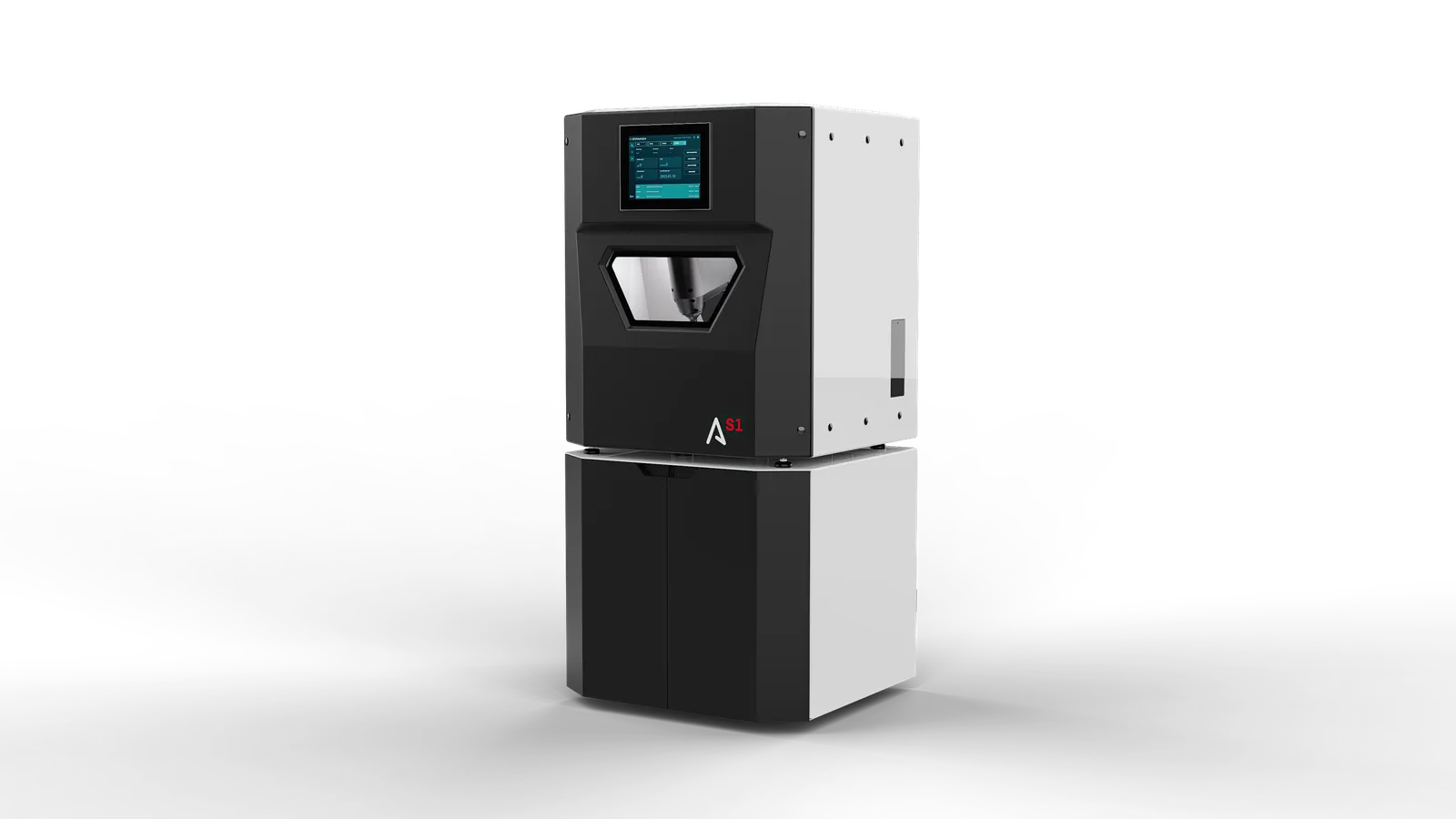

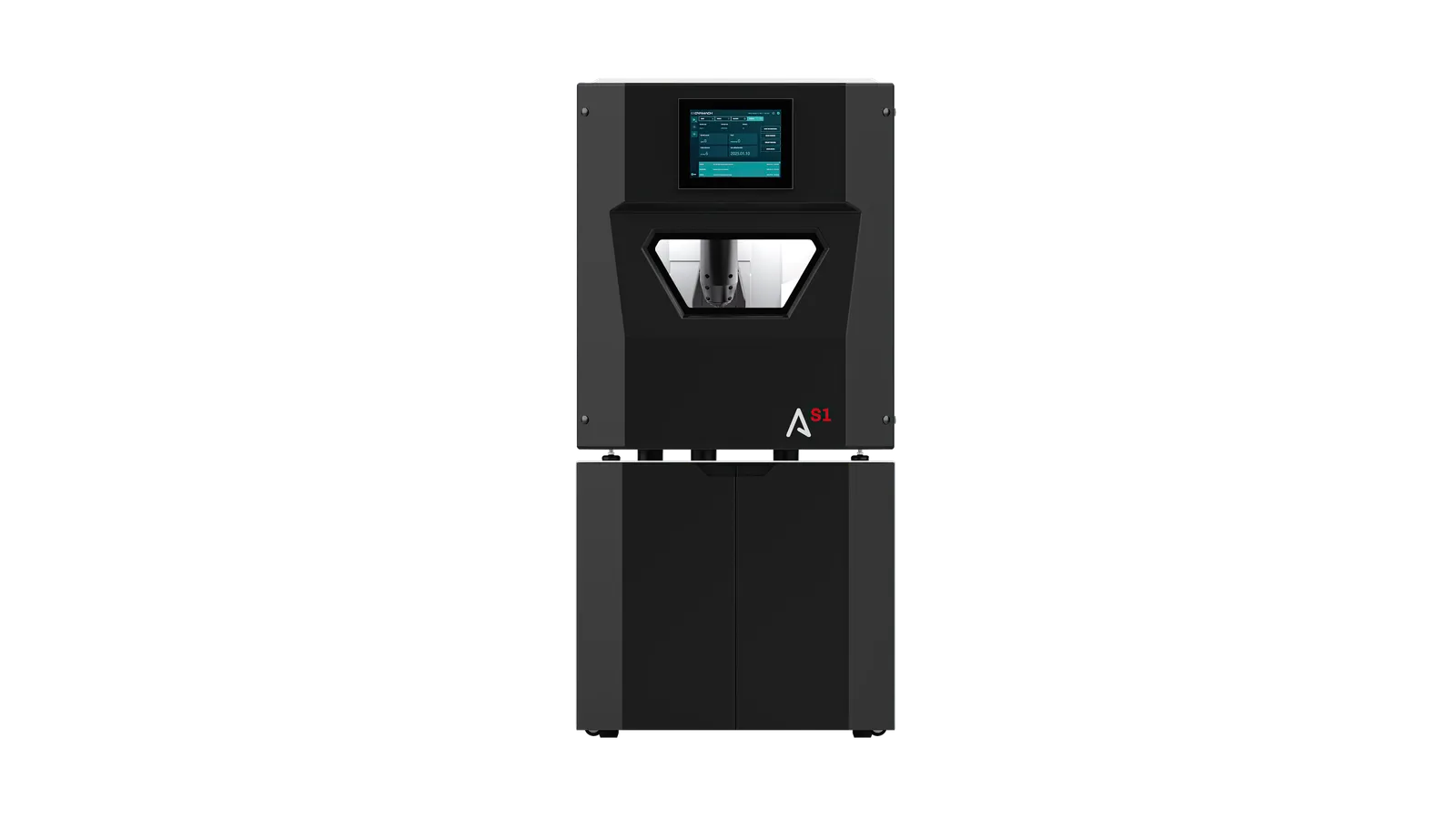

Optional working bench for materials and tools
Applications
Where it's used.
- Anatomical bridges and crowns, Bridge and crown, Bridge and wax crown, Abutment, Bars and bridges, Selective laser melting, Glass ceramic, Denture, Partial prosthesis, Bite, Primary and secondary with screw thread
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Dimensions | 86 x 78 x h103 cm (LxPxH) |
| Weight | 300 kg |
| Power supply | 230 V / 50/60 Hz |
| Spindle power | 1 kW |
| Spindle speed | 60,000 rpm |
| Machining type | Dry / Wet |
| Spindle tilt | -92° to +42° |
| Collet diameter | Ø 3 mm / 4 mm / 6 mm |
| Rated pressure | 6 Bar |
| Blank diameter | Ø 98±0.5 mm |
| Input increment | X,Y,Z=0.001 mm / A,B=0.001° |
| Axis repeatability | X,Y,Z=0.005 mm / A,B=0.005° |
