Super-fast scanning: proven scanning time of 25 seconds for a single arch
Made by us
Dental Equipment › Dental Imaging
WEB-004
Dexis Scanner IS 3800W
DexisThe DEXIS IS 3800W gives clinicians a whole new experience in acquiring impressions: freedom.
- Handpiece dimensions
- 226 x 38 x 50 mm (with normal or side tip)
- Weight
- 240 g (with battery)
- Backup power cable
- Length: 2 m
- Sensor technology
- 1/2.9 inch CMOS
Overview
What it does.
The DEXIS IS 3800W gives clinicians a whole new experience in acquiring impressions: freedom. It offers freedom from cables, freedom to pursue any indication desired, and freedom to interact with partners how and when preferred. As the result of a collaboration with Studio F. A. Porsche, the IS 3800W displays a timeless, ergonomic design that ensures a high-performance scanning experience. It is one of the lightest and most compact intraoral scanners on the market, delivering fast and smooth scanning thanks to a large and deep field of view, all within a comprehensive end-to-end solution that provides a seamless user experience.
Key features
What makes it different.
Enlarged 16 x 14 mm field of view and 21 mm depth of field, capturing detail in interproximal areas and subgingival margins
Lightweight and compact: only 240 g, fits comfortably in the hand
Dynamic handpiece control via two intuitive buttons
Gesture motion control: embedded sensor orients the digital model on screen by rotating the scanner, no mouse needed
Interchangeable tips (three styles), autoclavable up to 110 times

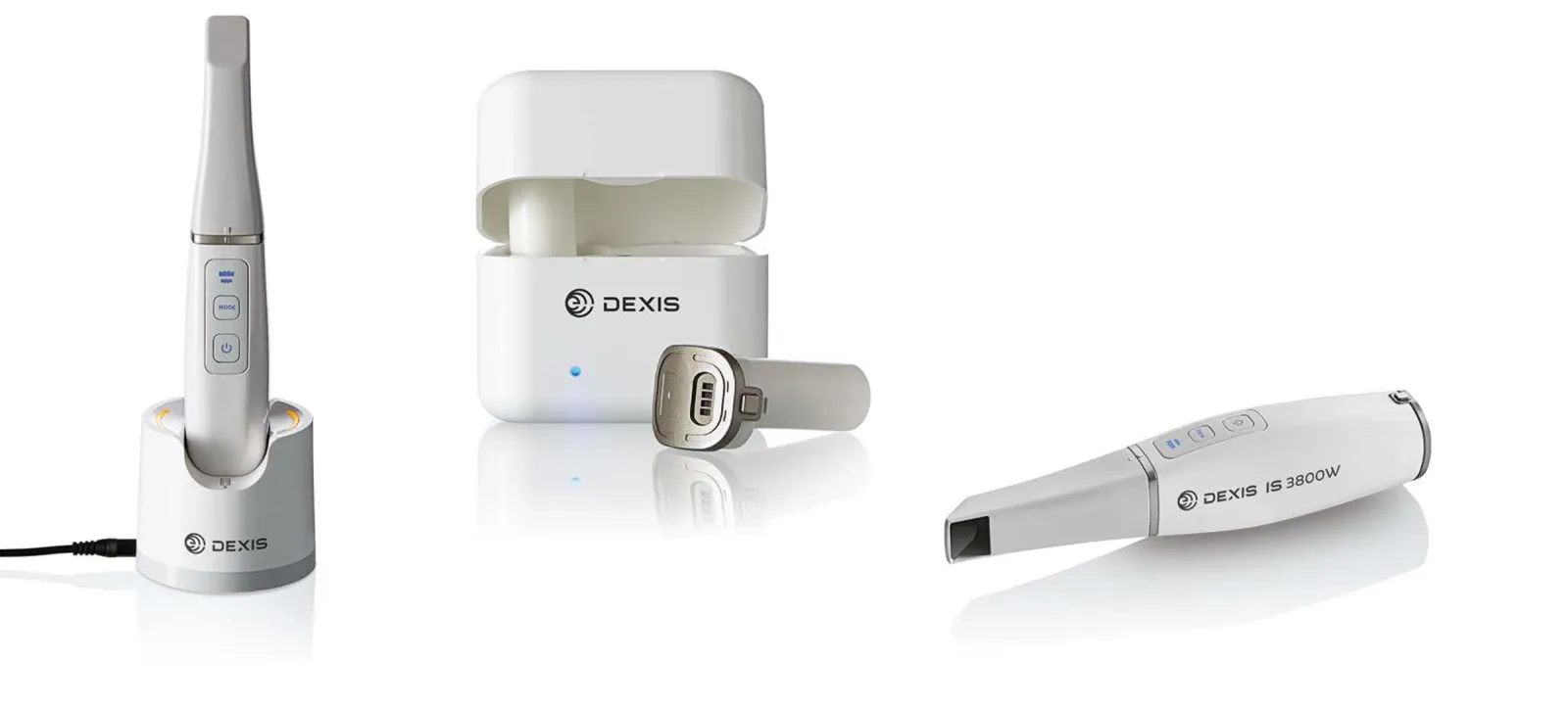

Up to one hour of continuous scanning with smart charging station, back-up power cable, and optional extra batteries/charging unit
Stable wireless connection via dedicated point-to-point WiFi (plug in dongle and start scanning)
IS ScanFlow software: edentulous scanning mode, AI Matching for optimized scanning performance, scan recording in MP4 format, margin line identification, measurement/occlusion/transparency tools, smart-shade technology, base creation for 3D printing, and use as an intraoral camera for 2D images
IS Connect: one-click export to STL, PLY, OBJ, DWOS XOrder, EXOCAD Dental project, eliminating shipping costs/delays and empowering labs to use preferred CAD software
IS WebViewer: cloud-based collaboration with labs, white background for vivid 3D HD review, orientation adjustment, snapshot capture, occlusion proximity tools, Quick Connect Partners integration
Supports multiple clinical indications: sleep medicine, denture/edentulous cases, implant planning, restorative, orthodontics
Red Dot Award winner (Product Design 2022)
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Sensor technology | 1/2.9 inch CMOS |
| Illumination | LED: Red, Blue, Green |
| Field of view | 16 x 14 mm / 13 x 7 mm (posterior tip) |
| Depth of field | -2 to +16 mm |
| Anti-fogging technology | By airflow, guaranteed non-fogging operation intraorally |
| Handpiece dimensions | 226 x 38 x 50 mm (with normal or side tip) |
| Cable length | 2.7 m (1.9 m + 0.8 m) |
| Weight | 240 g (with battery) |
| Handpiece input | 5V/5A (with backup power cable) or 4.2V/3A (with battery) |
| Handpiece charger | Output 1 (charging port): 4.2V/3A; Output 2 (backup power cable port): 12V/2.5A |
| Battery charger | Input: 12V/2.5A; Output: 4.2V/3A |
| Backup power cable | Length: 2 m |
| Adapter | Model LXCP30A-120: Input 100-240V~ 50/60Hz 500mA, Output 12V/2.5A |
