Dental Equipment › Dental Imaging
WEB-032
Dexis Scan eXam One

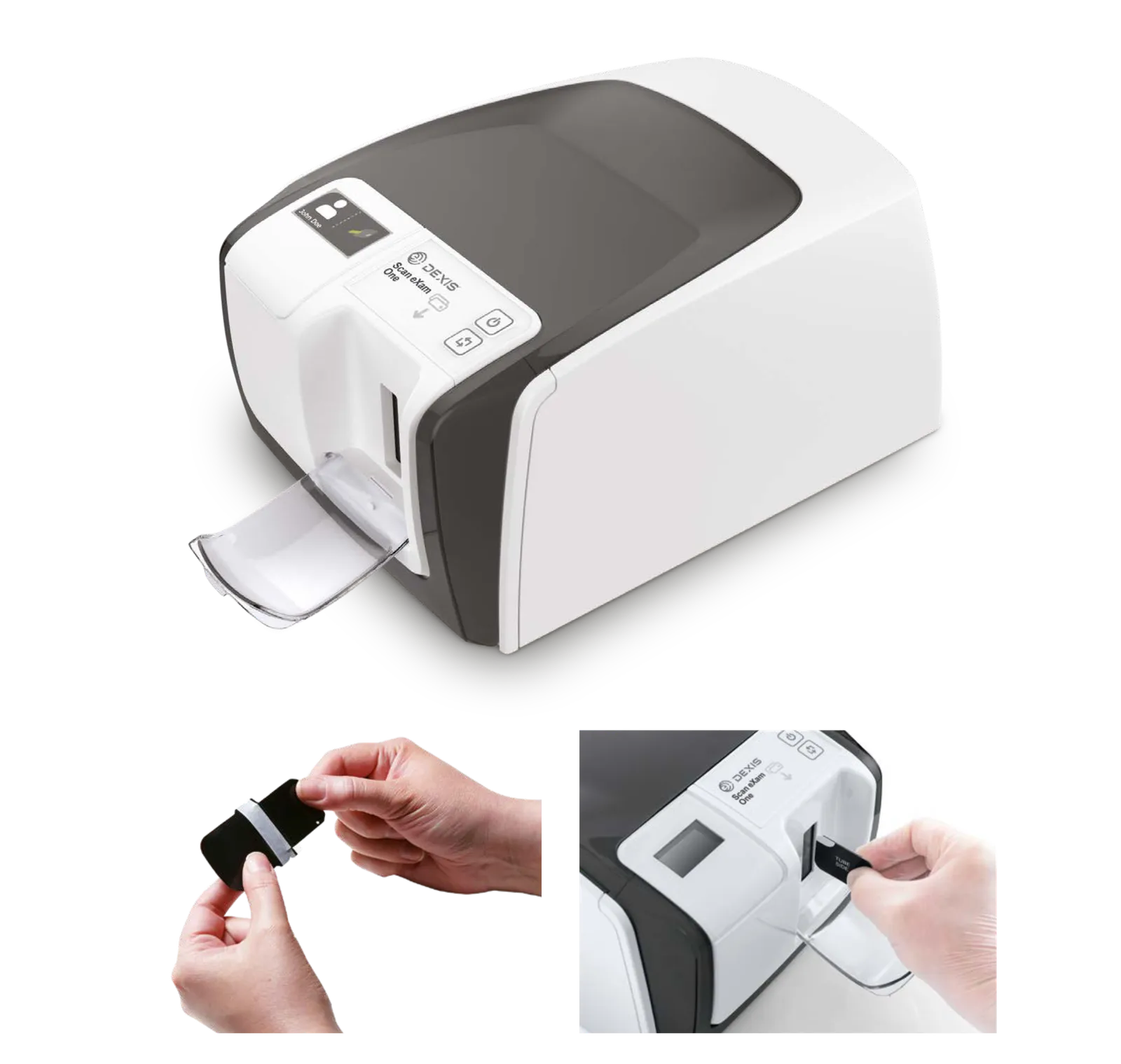

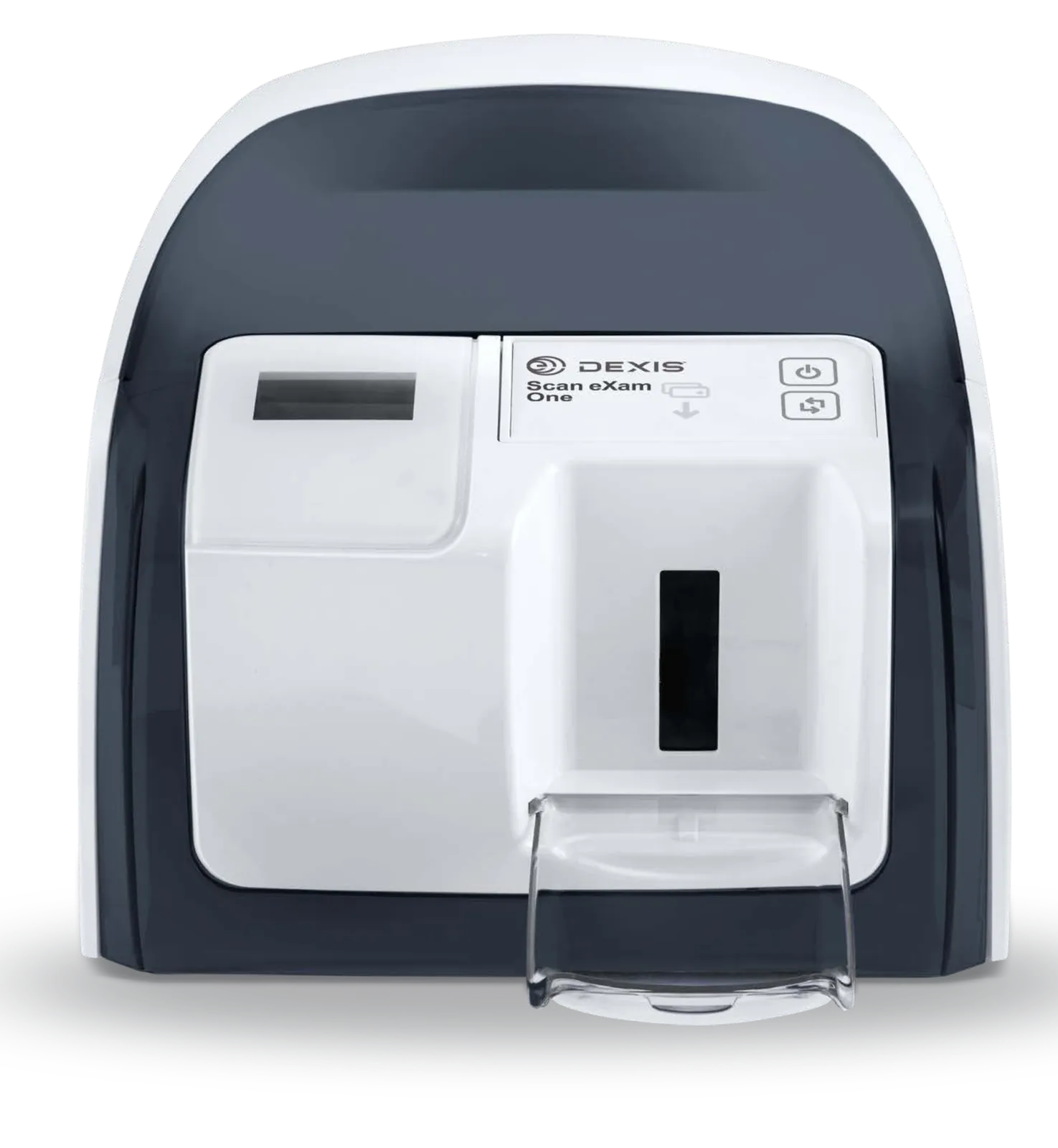

DexisThe DEXIS Scan eXam One is a compact intraoral imaging system that uses reuseable phosphor imaging plates to deliver fast, sharp digital radiographs across bitewing, periapical and occlusal exposures.
- Dimensions
- 168 mm x 233 mm x 328 mm (12.9" x 9.2" x 6.6")
- Weight
- 4 kg (8 lbs)
- Technology
- Reuseable imaging plate (Photo Stimulable Phosphor plate)
- Pixel size
- 30 µm / 60 µm, selectable
Overview
What it does.
The DEXIS Scan eXam One is a compact intraoral imaging system that uses reuseable phosphor imaging plates to deliver fast, sharp digital radiographs across bitewing, periapical and occlusal exposures. Advanced digital image processing produces consistent results directly from factory configuration, while still allowing adjustment to each dentist's diagnostic preferences. The system operates in a normal daylight environment with no chemicals required, and reads an inserted plate to on-screen display within seconds. For added workflow security, the patient name and user ID appear on the unit's display, and the iDOT tracking system on each imaging plate helps trace which plate was used for a given X-ray, making damaged plates easy to identify and replace. Designed for chairside or shared multi-user setups, the Scan eXam One is available in several colour options to suit individual clinicians or shared clinic environments.
Key features
What makes it different.
Scanning resolution of 17 lp/mm and 16-bit image depth
Supports Occlusal 4C image format

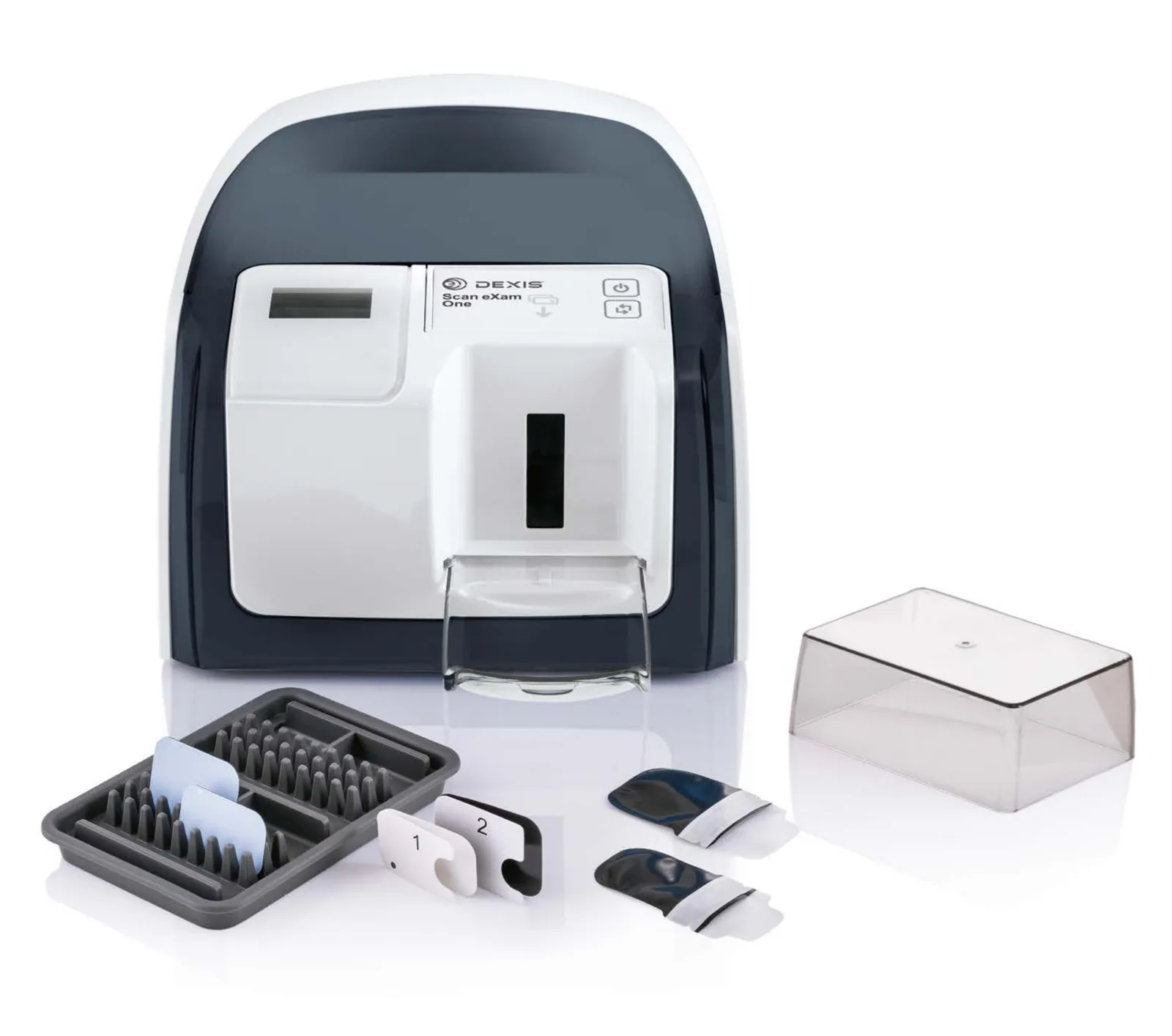

Reuseable Photo Stimulable Phosphor (PSP) imaging plates, as easy to position as film
Selectable pixel size (30 µm / 60 µm)
Fast workflow: image reading to on-screen display in seconds
Operates in normal daylight, no chemicals needed
Patient name and user ID shown on display for workflow safety
iDOT tracking system for plate traceability and damage identification
Easy front-side operation with minimum space requirements
Available in multiple colours for individual or shared/chairside use
Standard Ethernet (RJ45) network connection with DHCP
Applications
Where it's used.
- Bitewing, periapical and occlusal intraoral X-rays
- Particularly suitable for pediatric patients (due to range of plate sizes)
- Chairside use by individual clinicians or shared use across multiple users/rooms
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Technology | Reuseable imaging plate (Photo Stimulable Phosphor plate) |
| Pixel size | 30 µm / 60 µm, selectable |
| Scanning resolution | 17 lp/mm |
| Image bit depth | 16 bit |
| Connection | Standard network connection (Ethernet RJ45), DHCP |
| Dimensions | 168 mm x 233 mm x 328 mm (12.9" x 9.2" x 6.6") |
| Weight | 4 kg (8 lbs) |
| Operating voltage | 100–240 VAC, 50/60 Hz |
| Operating system | Windows 7, Windows 8.1 or Windows 10 |
