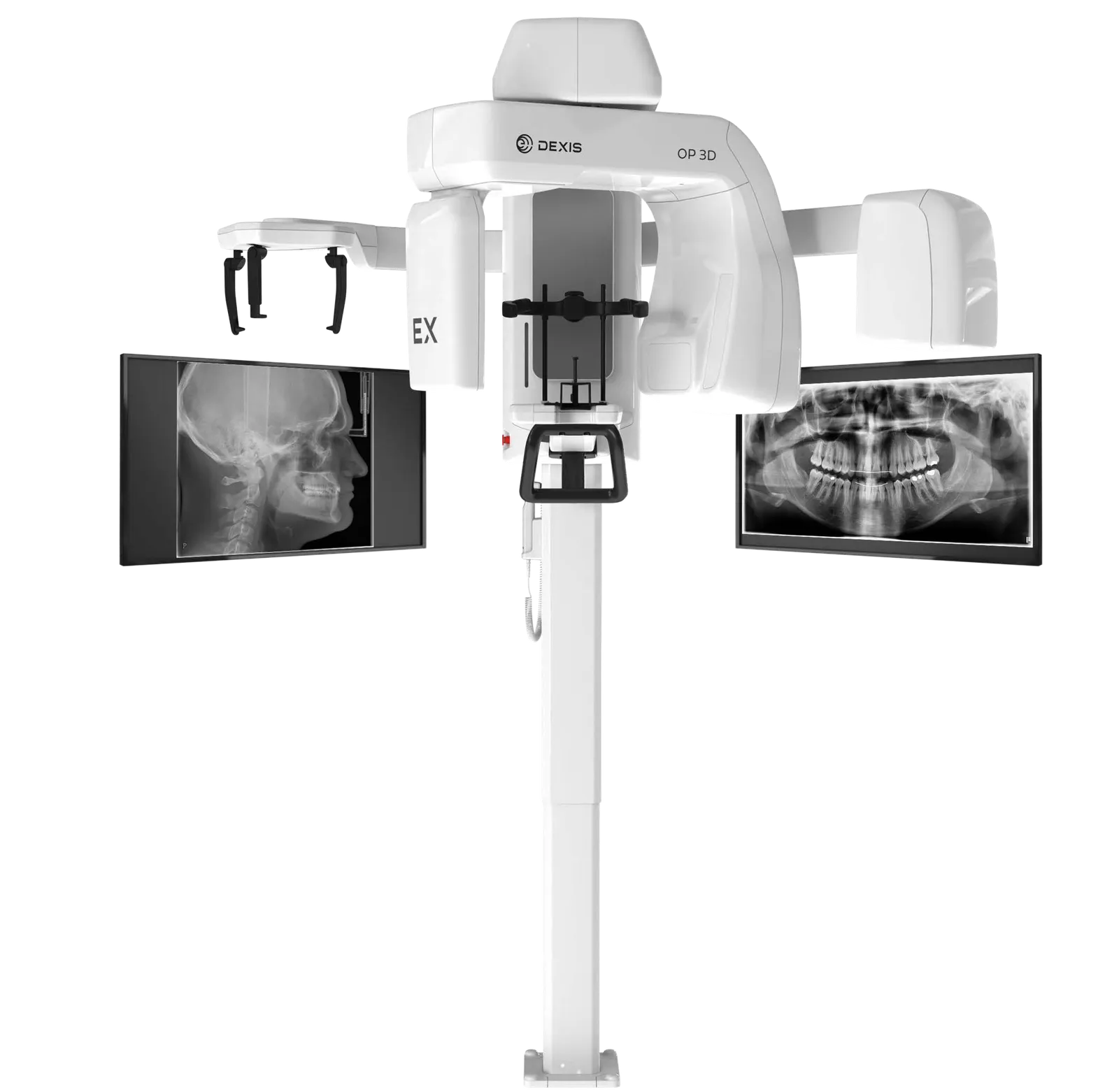

Upgradable to cephalometric imaging via the patented ORTHOceph Plus design
Made by us
Dental Equipment › Dental Imaging
WEB-029

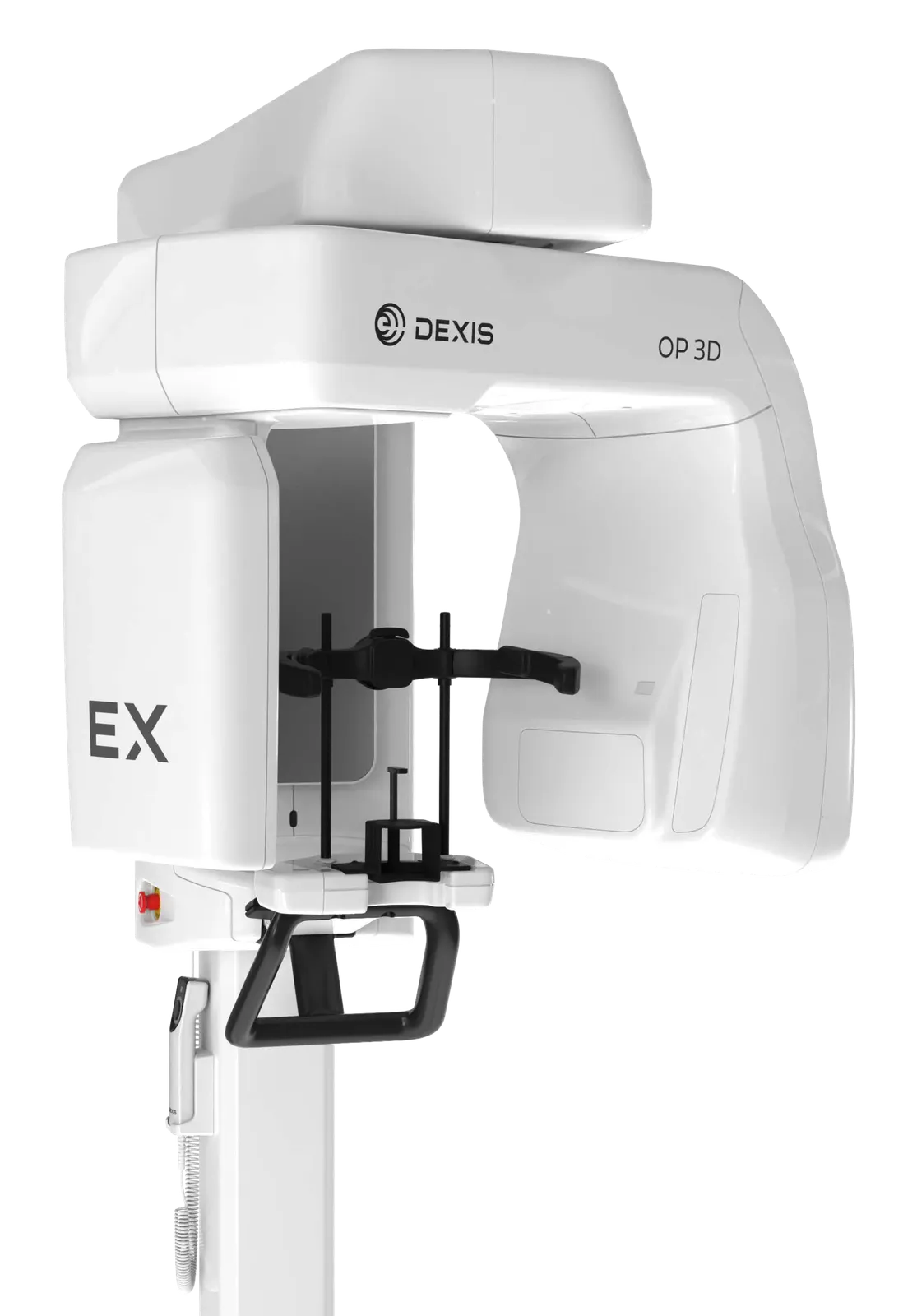

Dexis ORTHOPANTOMOGRAPH OP 3D EX
DexisBuilt on the OP 3D family technology, the OP 3D EX is a complete x-ray platform designed for general practitioners looking to expand their practice with 3D imaging.
- HU capacity
- 35 kJ, 49,000 HU
- Weight
- 120 kg / 265 lbs
- Weight
- 155 kg / 342 lbs
- Image volume sizes (HxD)
- 5x5, 6x9, 8x8, 10x10, 10x11, 10x15 cm (optional); 66 customizable FOV options
Overview
What it does.
Built on the OP 3D family technology, the OP 3D EX is a complete x-ray platform designed for general practitioners looking to expand their practice with 3D imaging. It makes it easy to capture high-quality images with fast scan times while providing user-friendly features throughout the entire dental imaging workflow. Clear, accurate 3D scans and confident diagnosis are supported by flexible field of view sizes and advanced filters, both in the device and within DTX Studio Clinic, including Metal Artifact Reduction (MAR), Implant Contrast Enhancement (ICE), and Edge-Preserving Noise Reduction (EPNR). The OP 3D EX is now completely upgradable to cephalometric imaging, benefiting from the innovative, patented ORTHOceph Plus design.
Key features
What makes it different.
NEW HD Pan program for improved panoramic image quality
NEW ergonomic exposure switch with light indicator showing device status (ready/exposing)
Flexible FOV from 5x5 cm to 10x15 cm (optional), adjustable volume height with low dose, standard, endo and high resolutions; 6 preset FOVs and 66 customizable volume sizes
Fast, accurate image capture in 4 steps: user-friendly interface, secure patient positioning (newly designed head support), optional scout for accurate capture, fast scan times
On average 30% faster overall scan times and 50% faster low dose scan times (vs. OP 3D)
Advanced image algorithms: ICE (implant surroundings/inner structure visualization), updated MAR (minimizes metal-induced artifacts), EPNR (reduces noise while preserving sharp edges)
DTX Studio Clinic AI-driven implant workflow: MagicAssist automated case setup (6 steps), virtual tooth extraction, automated surgical template creation (with exportable STL file) in under 3 minutes, implant and abutment libraries (29+ brand families, 4,500+ implants)
AI automation: automatic focal trough, tooth-centric navigation workflow, automated tracing of mandibular nerve canal, patient positioning correction, AI-powered fusion of CBCT and intraoral scans
Ceph modality supports lateral and pediatric lateral projections (adjustable field widths 16-26 cm), PA projections, and optional carpus imaging
Supports implant placement, endodontics, periodontics, airway analysis, TMJ analysis, prosthodontics
DEXIS Connect Pro for proactive equipment monitoring (availability varies by region/plan)
Optional 10-year warranty coverage
Wheelchair accessible
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Focal spot | 0.5 (IEC 60336/2020) |
| Tube voltage | 60 - 95 kV |
| Tube current | 2 - 16 mA |
| HU capacity | 35 kJ, 49,000 HU |
| Minimum total filtration | 3.4 mm Al @ 95 kV |
| Wheelchair accessible | Yes |
| DICOM support | Yes |
| Min. room height | 2110 mm |
| Image detector | IGZO TFT |
| Sensor/image pixel size | 95 μm |
| Exposure time | 1.4 - 15.0 s (Standard Pan 9.0 s) |
| Image field height | 116.7 - 159.6 mm |
| Imaging programs | Standard, Pan HD, segmented standard, pediatric, segmented pediatric, bitewing, TMJ, lateral |
| Weight | 120 kg / 265 lbs |
| Image detector | IGZO TFT |
| Sensor/image pixel size | 95 μm |
| Exposure time | 6.9 - 11.3 s |
| Image field height | 180.0 - 235.9 mm |
| Imaging programs | Lateral, pediatric lateral, PA, carpus |
| Weight | 155 kg / 342 lbs |
| Image detector | IGZO TFT |
| Voxel size | 80 - 400 μm |
| Exposure time | 0.9 - 19.4 s |
| Scan time | 5.5 - 19.4 s |
| Image volume sizes (HxD) | 5x5, 6x9, 8x8, 10x10, 10x11, 10x15 cm (optional); 66 customizable FOV options |
| Width | 1345 mm / 53.0 in |
| Depth | 530 mm / 20.9 in |
| Length | 1100 mm / 43.3 in |
