DEXISTough™ robust engineering — three times more resistant to damage or functional failure than the previous GXS-700 model
Made by us
Dental Equipment › Dental Imaging
WEB-073
Dexis IXS Sensor

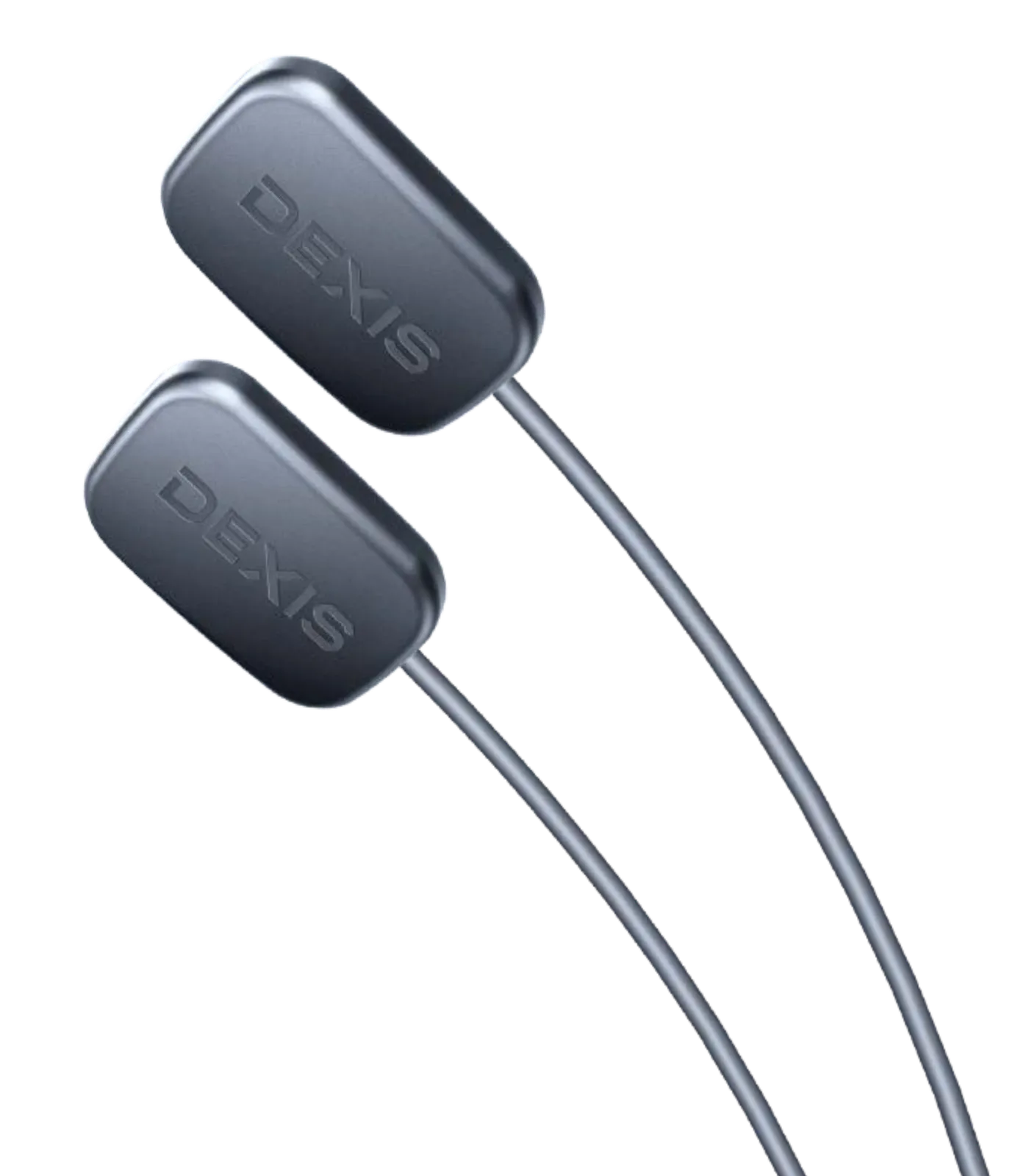

DexisThe DEXIS IXS Sensor is an intraoral digital imaging sensor engineered for reliability and diagnostic image quality in dental practices.
- Active Area Dimensions
- Size 1 Sensor: 20.2 x 30.1 mm; Size 2 Sensor: 26.0 x 36.0 mm
- Overall Dimensions (thickness / outer)
- Size 1 Sensor: 8.2 mm / 25.2 x 37.0 mm; Size 2 Sensor: 9.0 mm / 30.4 x 42.3 mm
- Pixel Resolution
- Size 1 Sensor: 1539 x 1026 px; Size 2 Sensor: 1842 x 1324 px
- Resolution
- Size 1 Sensor: Theoretical: 25.6 lp/mm — Visible: 20+ lp/mm; Size 2 Sensor: Theoretical: 25.6 lp/mm — Visible: 20+ lp/mm
Overview
What it does.
The DEXIS IXS Sensor is an intraoral digital imaging sensor engineered for reliability and diagnostic image quality in dental practices. Building on decades of intraoral imaging expertise from the Gendex™, Soredex™, Instrumentarium™ and KaVo brands, DEXIS IXS combines robust, damage-resistant construction with enhanced CMOS sensor technology to consistently deliver diagnostic-quality radiographs. The sensor features SimplySmart™ IoT capabilities, including automated software updates, proactive device health monitoring, and internally stored calibration files for seamless multi-surgery deployment. Available in two RiteSize™ sensor sizes, DEXIS IXS is designed for both clinical durability and optimized patient comfort.
Key features
What makes it different.
Handles double the biteforce without cosmetic damage compared to the GXS-700 model
SimplySmart™ IoT capabilities: direct-download calibration files, automated software updates, and proactive sensor health monitoring

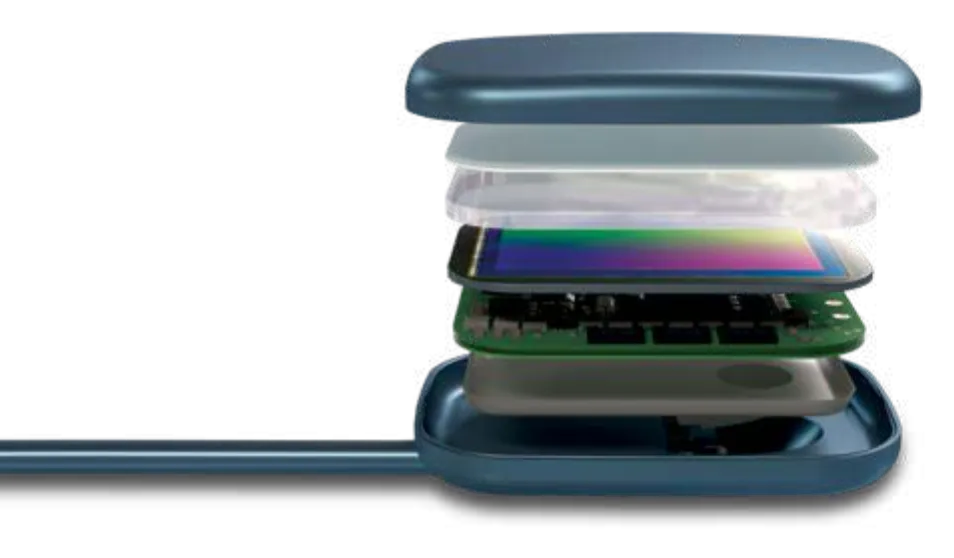

Enhanced CMOS sensor technology (CsI scintillator + optical fibers) for improved contrast, reduced noise, and greater dose flexibility
Expanded dynamic range enables sharp images at low radiation doses
Cable withstands 22 lbs of force without functional failure, reinforced with copper alloy inner shield and Kevlar™-reinforced strands; rated for over 240,000 bend cycles
Cable directly fused to USB housing for robust protection against twisting and tugging
Two RiteSize™ sensor sizes (Size 1 and Size 2) with ergonomic, sharp-edge-free design for patient comfort
Custom positioning system with color-coded bitewing (red), anterior (blue), and posterior (yellow) holders
Positioning holders are backwards compatible with predecessor GXS-700 sensors and withstand repeated autoclaving
Open integration with popular imaging/practice management software without bridges or additional purchases
Compatible with DTX Studio™ suite for 2D/3D acquisition, diagnosis, treatment planning, and placement
USB plug-and-play installation with easy transfer between surgery computers
Applications
Where it's used.
- Periapical imaging for visualization of tooth anatomy (enamel, dentin, dentin-enamel junction, pulp, periodontal ligament, crestal bone)
- Full crown-to-apex imaging for diagnosing periapical pathosis, open margins on restorations, and potential fractures
- Bitewing imaging for occlusal closure and alignment assessment
- Diagnostic imaging across a wide range of exposure settings, including low-dose acquisition
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Active Area Dimensions | Size 1 Sensor: 20.2 x 30.1 mm; Size 2 Sensor: 26.0 x 36.0 mm |
| Pixel Resolution | Size 1 Sensor: 1539 x 1026 px; Size 2 Sensor: 1842 x 1324 px |
| Overall Dimensions (thickness / outer) | Size 1 Sensor: 8.2 mm / 25.2 x 37.0 mm; Size 2 Sensor: 9.0 mm / 30.4 x 42.3 mm |
| Resolution | Size 1 Sensor: Theoretical: 25.6 lp/mm — Visible: 20+ lp/mm; Size 2 Sensor: Theoretical: 25.6 lp/mm — Visible: 20+ lp/mm |
| USB Port | Size 1 Sensor: USB 2.0 / USB 3.x; Size 2 Sensor: USB 2.0 / USB 3.x |
| Cable Length / Diameter | Size 1 Sensor: 3 m / 3 mm; Size 2 Sensor: 3 m / 3 mm |
| Cable Material | Size 1 Sensor: Kevlar Reinforced; Size 2 Sensor: Kevlar Reinforced |
| Software Driver | Size 1 Sensor: DEXIS_IO-Sensor 1.5 or Higher; Size 2 Sensor: DEXIS_IO-Sensor 1.5 or Higher |
| Sensor Technology | Size 1 Sensor: Enhanced CMOS (CsI Scintillator + Optical Fibers); Size 2 Sensor: Enhanced CMOS (CsI Scintillator + Optical Fibers) |
| Mfg. Warranty | Size 1 Sensor: 2 Year; Size 2 Sensor: 2 Year |
| IoT Connectivity | Size 1 Sensor: Device Health Monitoring, Automatic SW Updates; Size 2 Sensor: Device Health Monitoring, Automatic SW Updates |
| Device Protection/Safe Guards | Size 1 Sensor: Over Current, Over Voltage, Low Power; Size 2 Sensor: Over Current, Over Voltage, Low Power |
