Full-automatic sterilization system, one-button start, all waterlines covered
Made by us
Dental Equipment › Dental Units & Equipment
WEB-013
Ajax Dental Unit AJ19
AjaxAJ19 is an intelligent, comfortable high-model dental unit designed for efficient four-handed operation.
- Chair height adjustment
- 385 - 825 mm
- Control panel
- 20 functions (doctor) / 10 functions (assistant)
- Screen
- 3.5" touch (main) / 3.2" LCD (delivery system)
- Dentist tray size
- 480 x 380 mm
Overview
What it does.

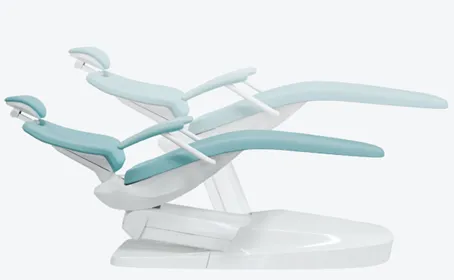

AJ19 is an intelligent, comfortable high-model dental unit designed for efficient four-handed operation. It features a sturdy and comfortable chair frame with linkage slide rail structure and precise aluminum casting, offering ergonomic movement suitable for any height. The function-rich operation panel provides comprehensive digital control, including scaler, endodontic mode, water temperature regulation, and disinfection process monitoring, while the full-automatic sterilization system covers all waterlines with one-button activation.
Key features
What makes it different.
Ajax smart control system with 3.5" touch screen; 20-function control panel (doctor side) and 10-function control panel (assistant side)
Function-rich operation panel: on-screen timer, scaler control, 6x4 group chair programs, Trendelenburg position, self-check on start, fiber optic handpiece switch, endo function mode, water temperature control, one-button water source switch, disinfection process monitoring, micromotor control (with endodontic mode)

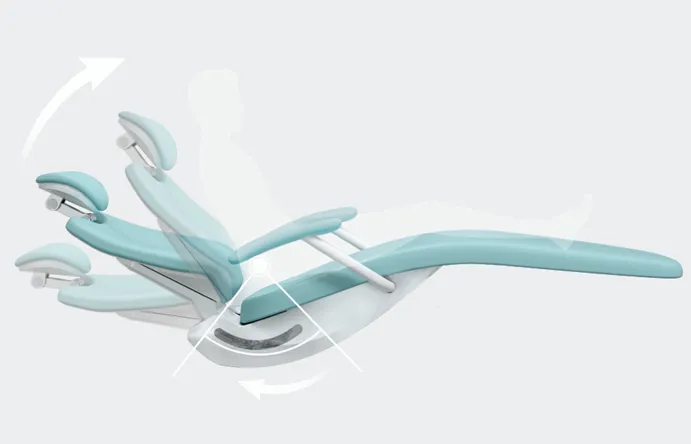

Chair suitable for any height, adjustable from 385mm to 825mm
DC24V electric backrest and chair motor with soft start and stop

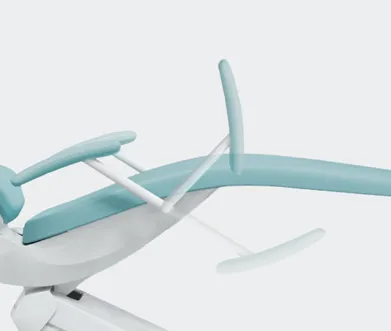

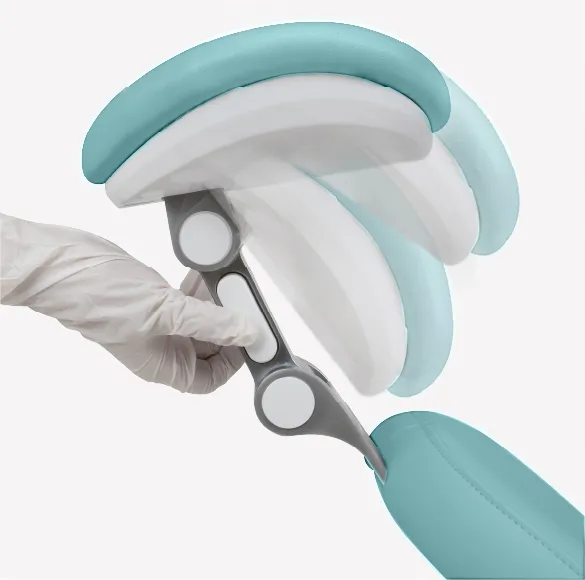

Articulate headrest (one-hand operation) and swivel armrest
Nappa leather upholstery
Ultra-flexible assistant unit with 3 individual hanging units and rotatable control panel

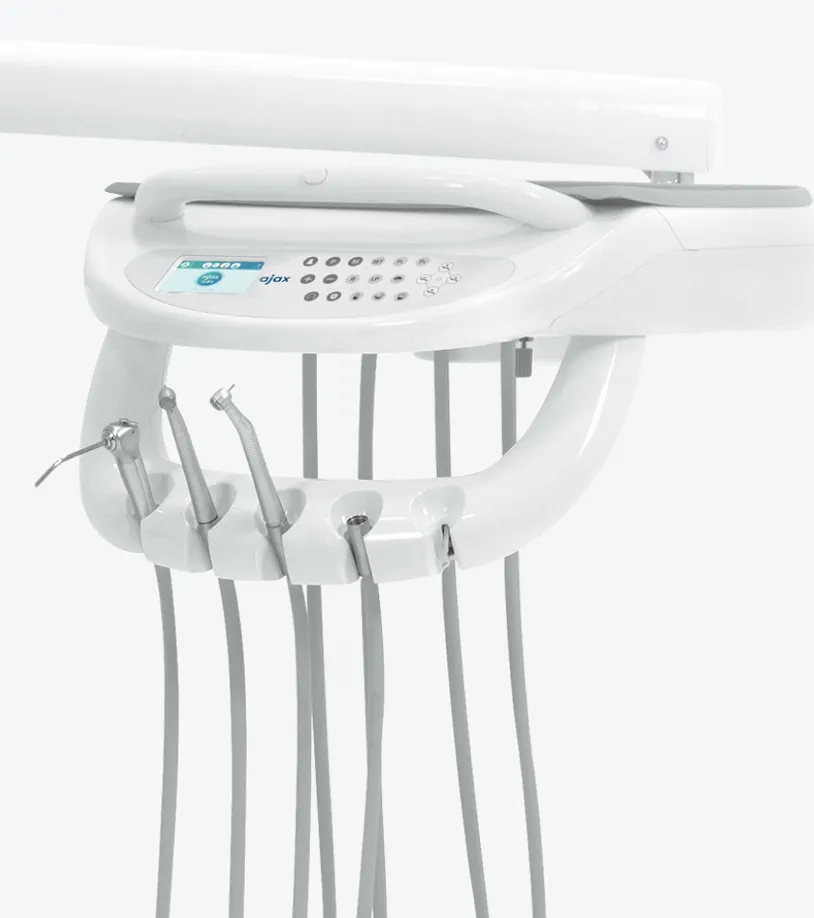

Delivery system with 3.2" LCD screen and 480 x 380mm dentist tray with sterilizable silicone pad
Rotatable ceramic cuspidor (135°), removable for sterilization
Pure water and disinfectant system with 1.3 L and 1.5 L water bottles (also listed as 1300ml + 1200ml)
Optional built-in amalgam separator
Optional continental delivery system with omni-directional rod
Multifunctional dual pedal foot control (water and air on separate pedals)

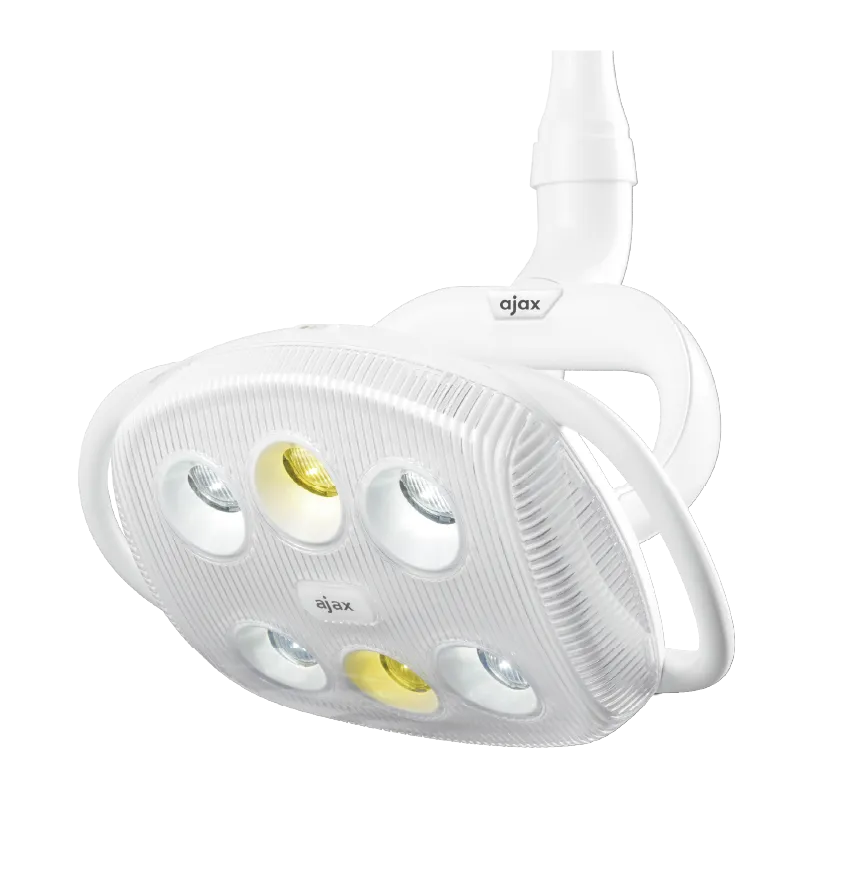

Amber 2 LED dental light with sensor control, white/yellow/mixed light modes, max. 40,000 lux, colour temperature 3500K-5200K+
Includes AJAX03 dental stool (6 functions, silicone wheels)
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Chair height adjustment | 385 - 825 mm |
| Control panel | 20 functions (doctor) / 10 functions (assistant) |
| Screen | 3.5" touch (main) / 3.2" LCD (delivery system) |
| Dentist tray size | 480 x 380 mm |
| Water bottles | 1.3 L (disinfection) / 1.5 L (water) |
| Light output | Max. 40,000 lux |
| Colour temperature | >5200K (max) / <3500K (min) |
