Ajax Dental Unit AJ17

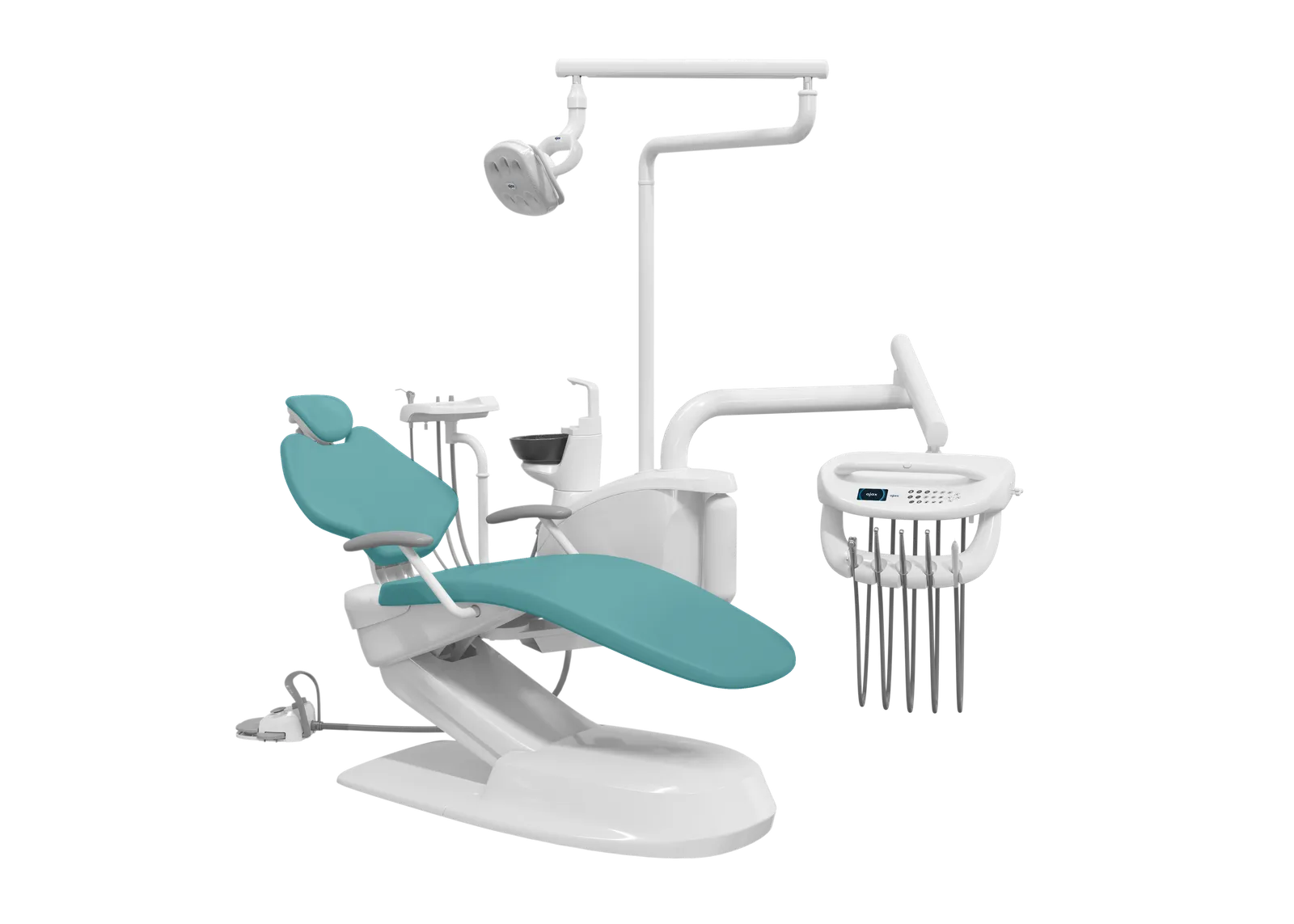

AjaxAJ17 is a high-model dental unit combining a digital control system with a multi-function operation panel.

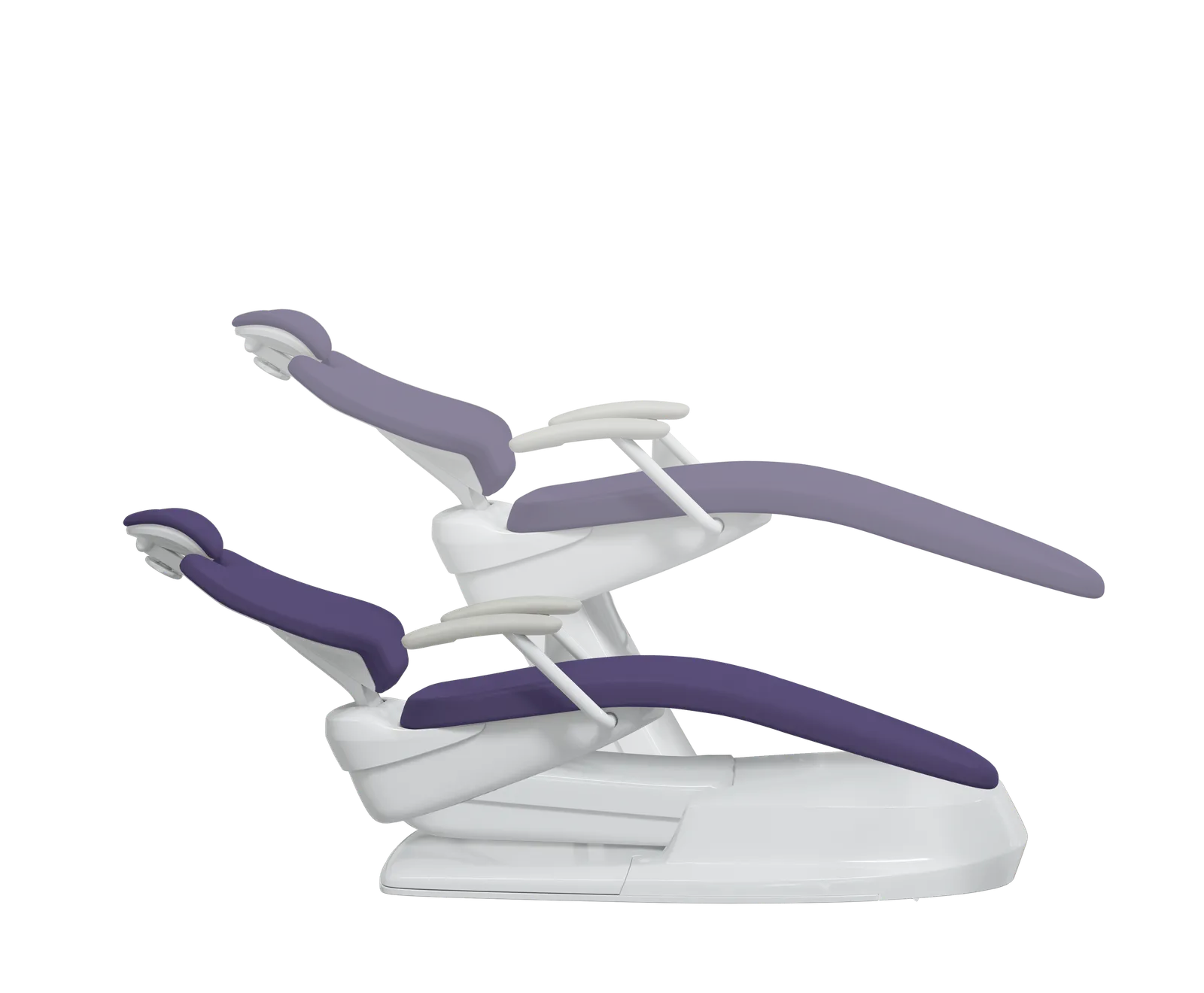

- Chair height adjustment
- 385 - 825 mm
- Screen
- 3.2"
- Water bottles
- 1300 ml (disinfectant) / 1500 ml (water)
- Light output
- Max. 40,000 lux
Overview
What it does.
AJ17 is a high-model dental unit combining a digital control system with a multi-function operation panel. It features a full-automatic sterilization system covering all waterlines, activated with a single button, and a 3.2" screen with electric motor control, handpiece status, and error code display. The ergonomic delivery system and comfort-focused chair design provide effortless four-handed operation and all-round patient comfort.
Key features
What makes it different.
AJAX smart control system with 3.2" screen and silicone anti-slippery pad
Digital control system with multi-function operation panel, scaler mode, electric motor control, handpiece status and error code display

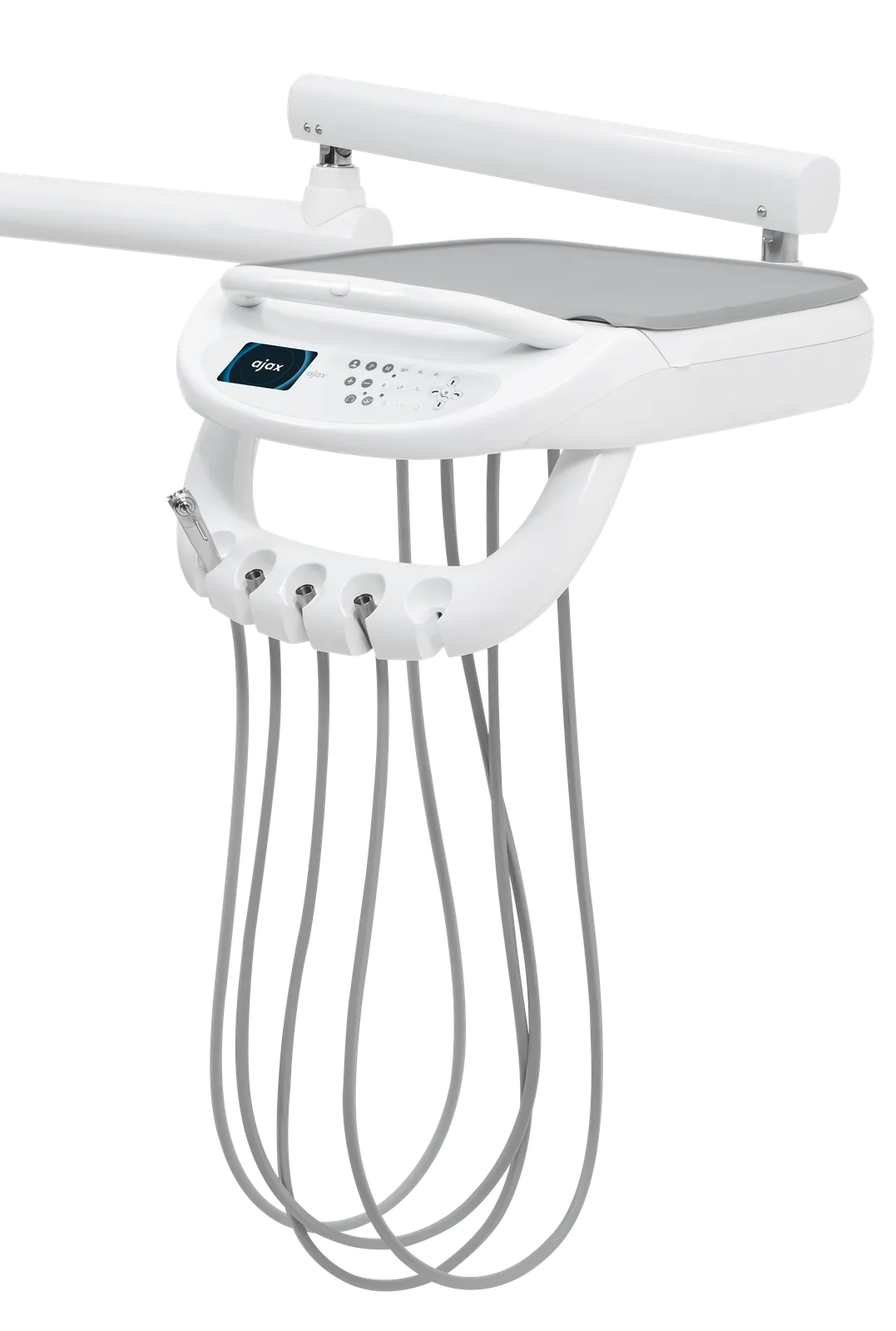

Ergonomic delivery system with large dentist tray and sterilization silicone pad

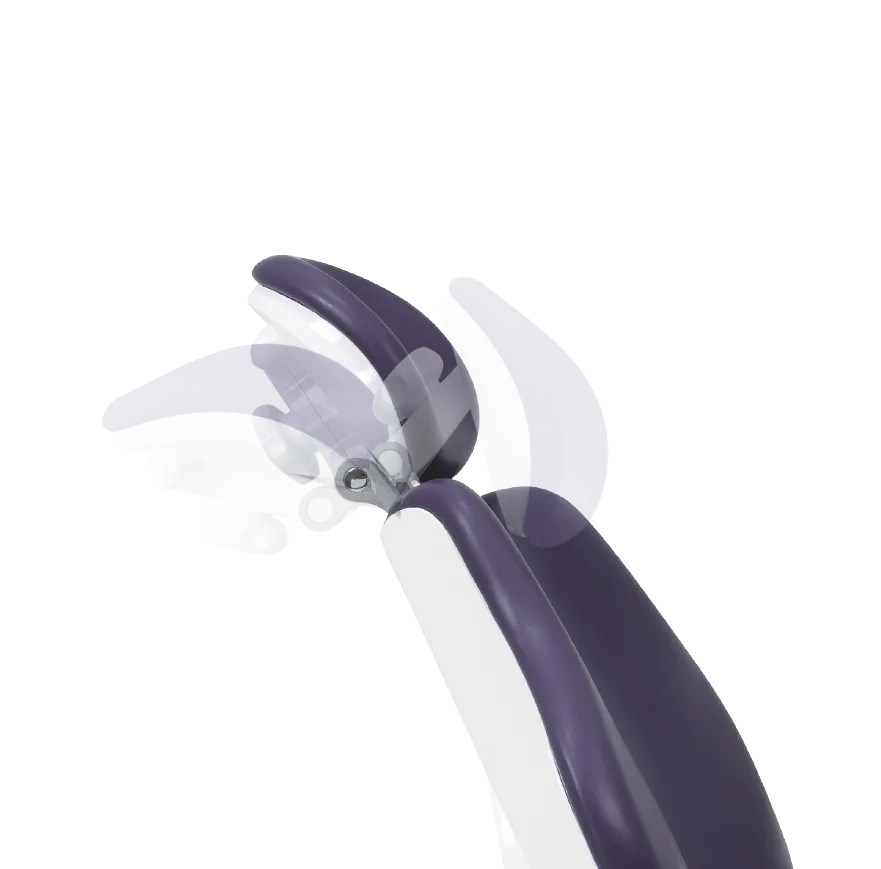

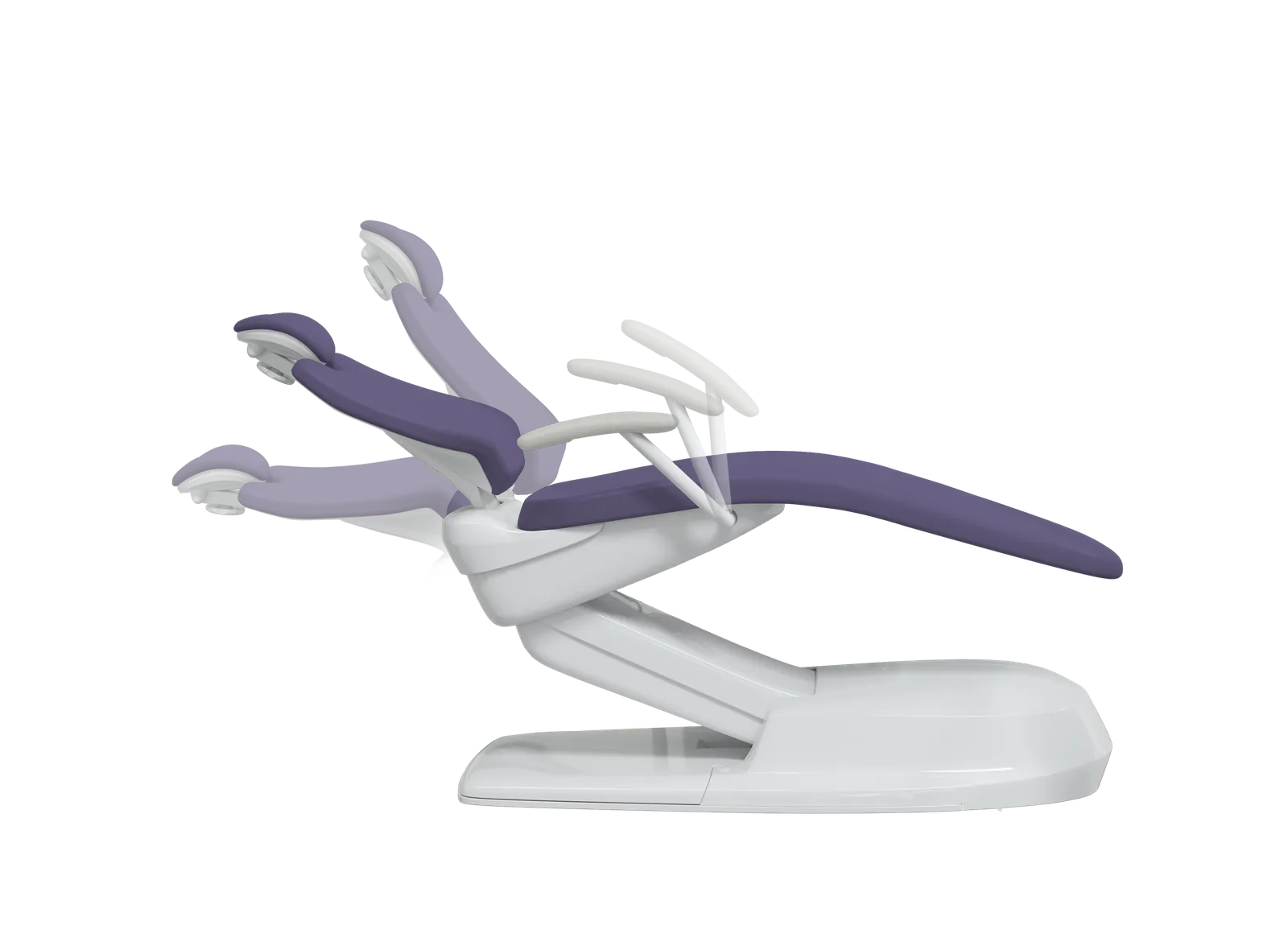

Comfort brand-new fan-shaped backrest and handwheel-adjustable headrest
Soft start and stop, smooth adjustment; ergonomic, no back-rubbing chair motion

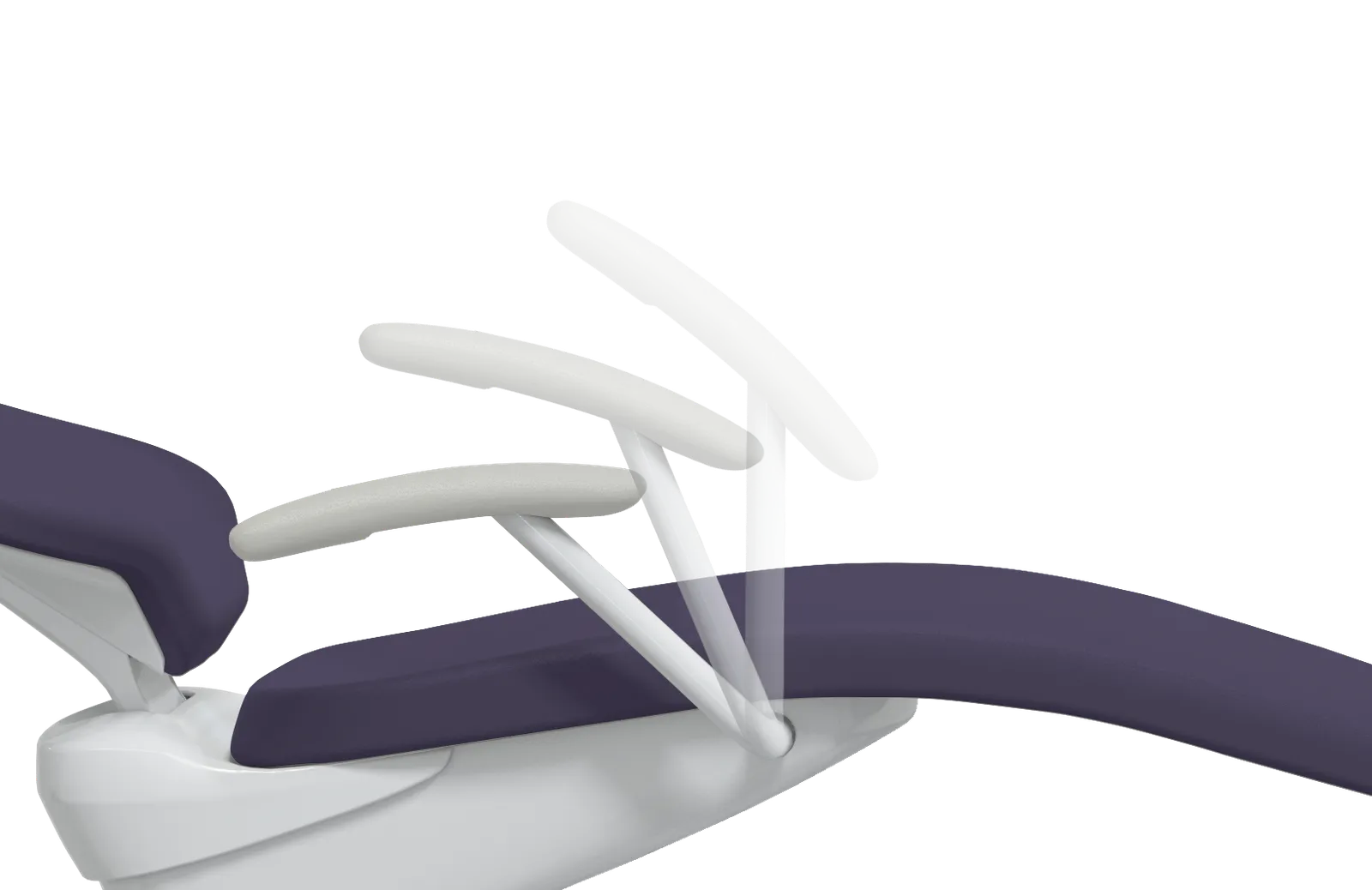

Forward-turning armrest; optional continental delivery system with omni-directional rod
Double-joint assistant unit with control panel
Detachable, rotatable glass cuspidor and rotatable side box
1300 ml disinfectant bottle and 1500 ml water bottle
Hydrolytic resistance waterlines
Built-in junction box with air/water filters and regulators
Sealed drainage device
FT-6 dual pedal foot control, with water and air controlled by different pedals
Master Air/Power/Water switch

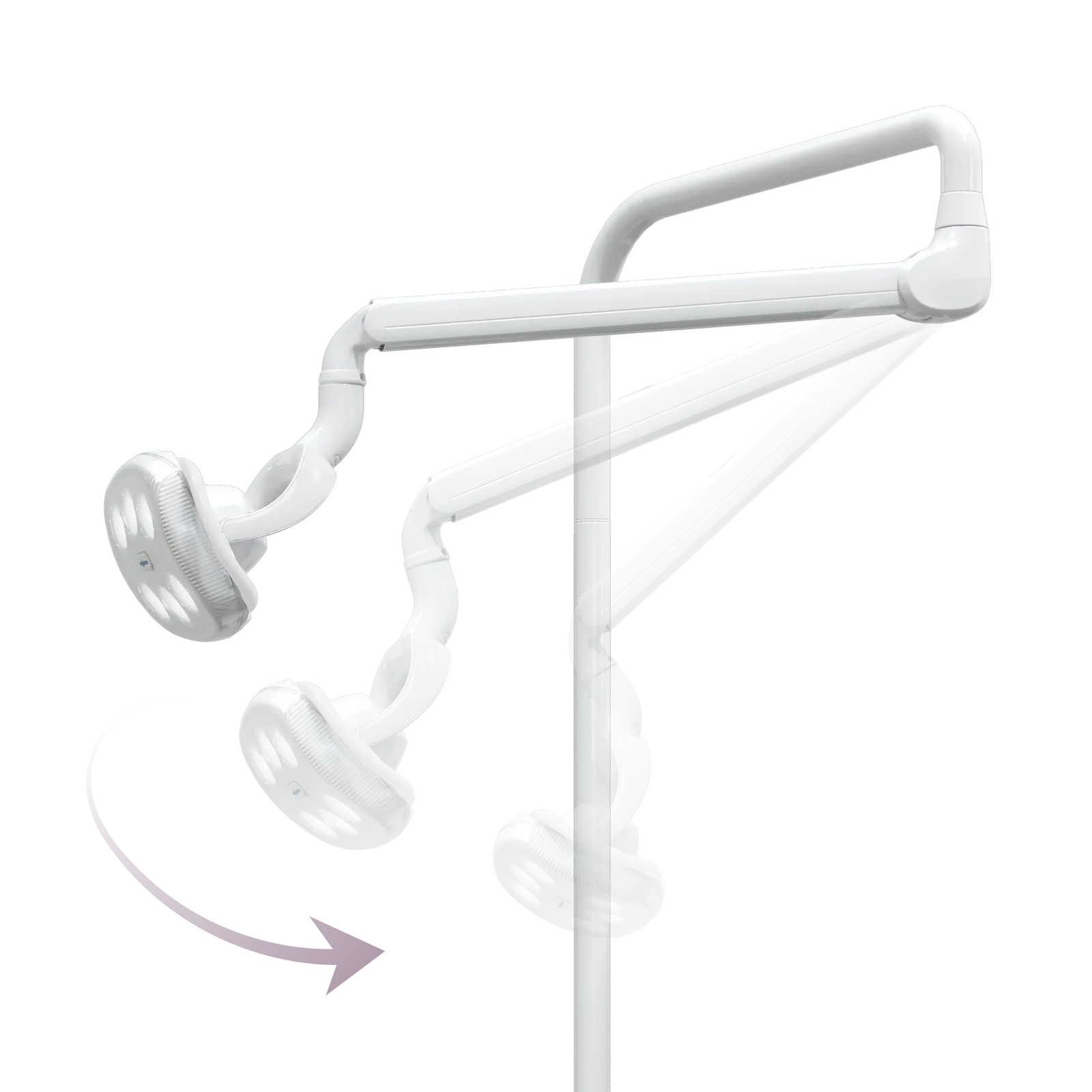

Amber 2 LED dental light with sensor control, white/yellow/mixed light modes, max. 40,000 lux, colour temperature 3500K-5200K+

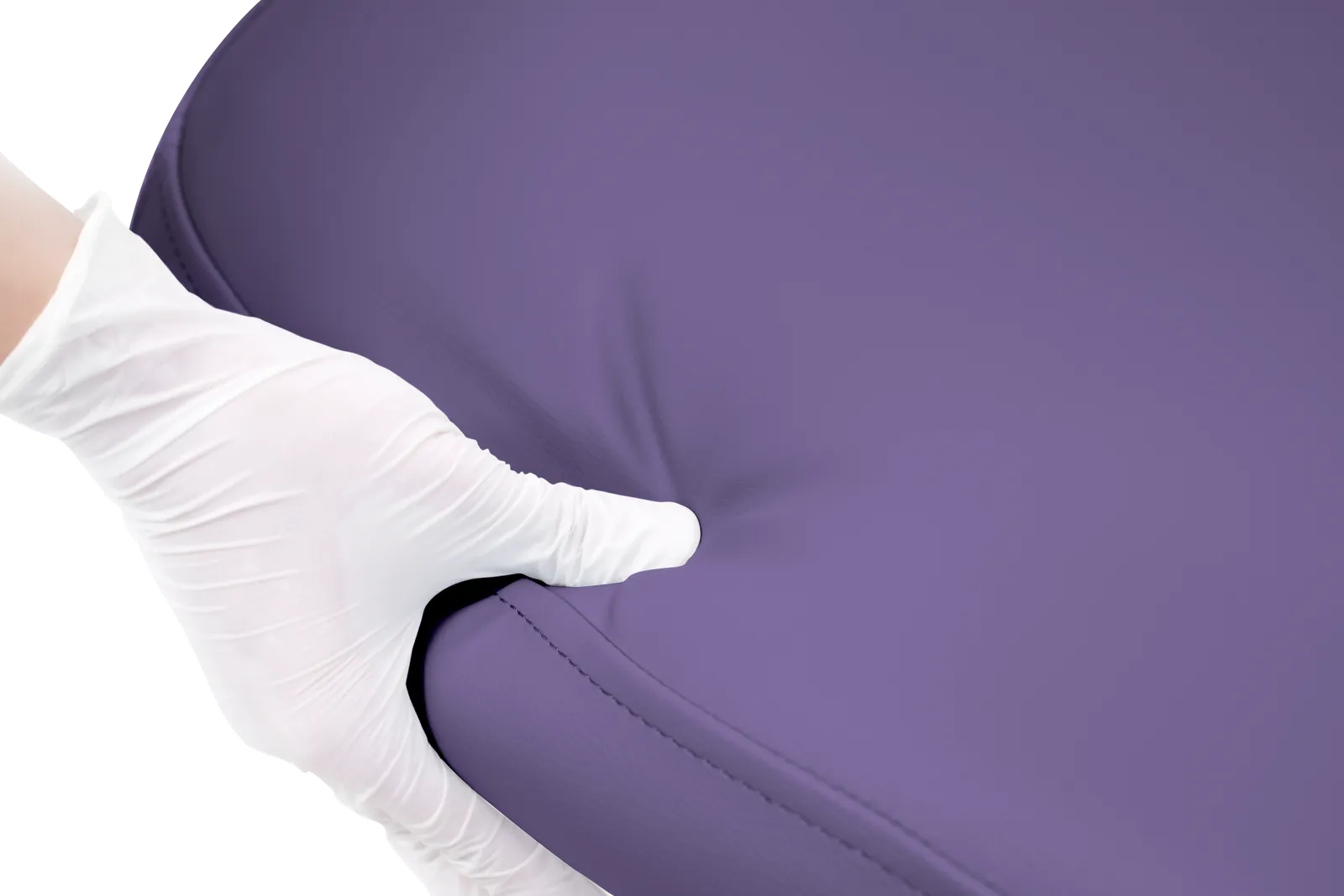

Nappa upholstery
Includes D3 dental stool (6 adjusting functions, silent wheel casters)
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Chair height adjustment | 385 - 825 mm |
| Screen | 3.2" |
| Water bottles | 1300 ml (disinfectant) / 1500 ml (water) |
| Light output | Max. 40,000 lux |
| Colour temperature | >5200K (max) / <3500K (min) |
