Strengthened heavy-duty metal chair frame, 180 kg load bearing, no shaking during treatment
Made by us
Dental Equipment › Dental Units & Equipment
WEB-011
Ajax Dental Unit AJ15
AjaxAJ15 is a high-model dental unit with a solid, hygienic style, featuring a strengthened heavy-duty metal chair frame with 180 kg load bearing and no shaking during treatment.
- Load bearing
- 180 kg
- Chair height adjustment
- 350 - 780 mm
- Control panel
- 15 functions (doctor) / 10 functions (assistant)
- Water bottles
- 1.3 L (sterilizing) / 1.5 L (water)
Overview
What it does.
AJ15 is a high-model dental unit with a solid, hygienic style, featuring a strengthened heavy-duty metal chair frame with 180 kg load bearing and no shaking during treatment. Its ergonomic chair design eliminates static friction when adjusting position, offering patients greater comfort with a 1° Trendelenburg position. The double-joint assistant unit and full-featured doctor and assistant control panels help doctors and nurses operate efficiently, while the chair-instrument mutual lock system and multiple safety and disinfection features ensure hygienic, reliable operation.
Key features
What makes it different.

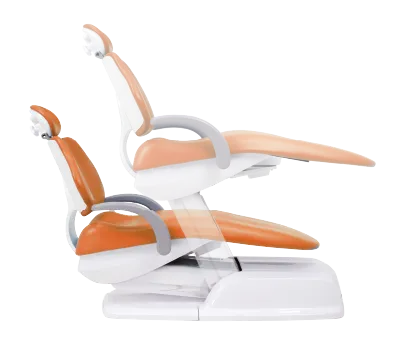

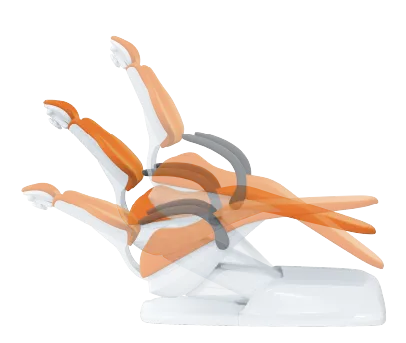

Ergonomic chair design with 1° Trendelenburg position, adjustable height from 350mm to 780mm
Chair-instrument mutual lock system and soft start/stop
DC24V electric motor with memory, high-speed backrest motor, 3 programmable positions

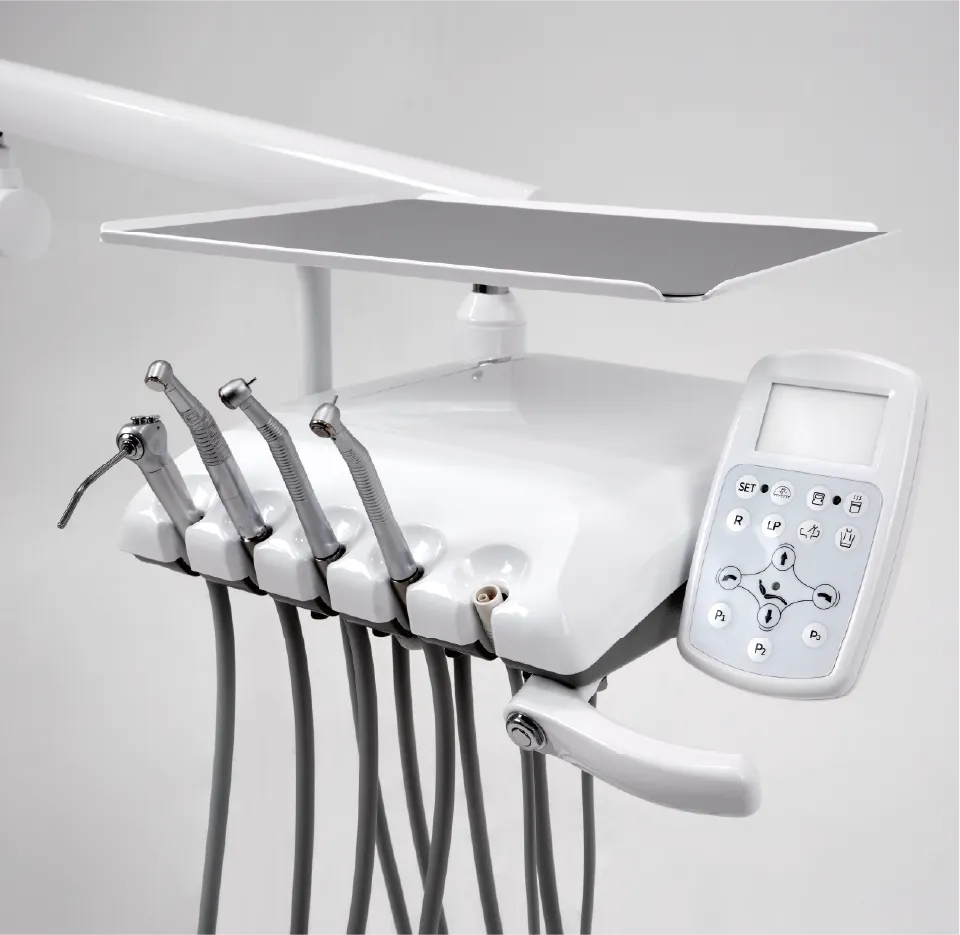

15-function control panel (doctor side) and 10-function control panel (assistant side)
Ajax multi-function foot control
Rotatable, detachable glass spittoon (135°), removable for high-temperature/high-pressure sterilization
Pure water system and disinfectant system with separate 1.3 L and 1.5 L bottles
24V water heater and 24V X-ray viewer
Sealed drainage device with suction delay-off system
Built-in junction box with air/water filters and regulators
Water/Air/Power one-switch control system

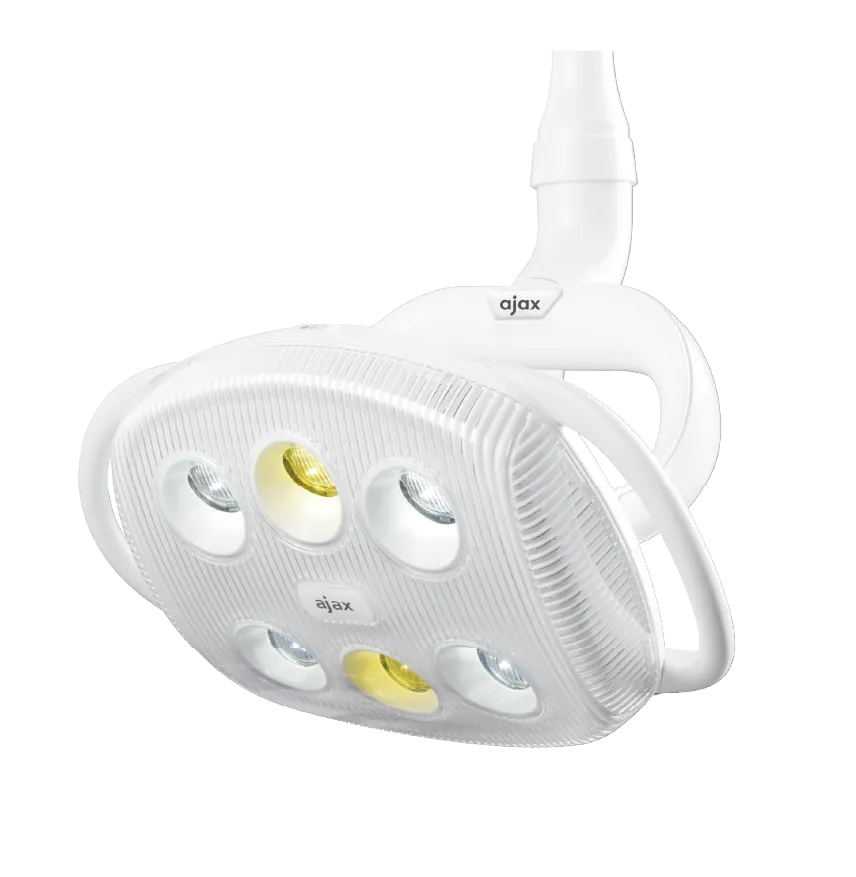

Amber LED dental light with sensor (double colours), white/yellow/mixed light modes, max. 40,000 lux, colour temperature 3500K-5200K+

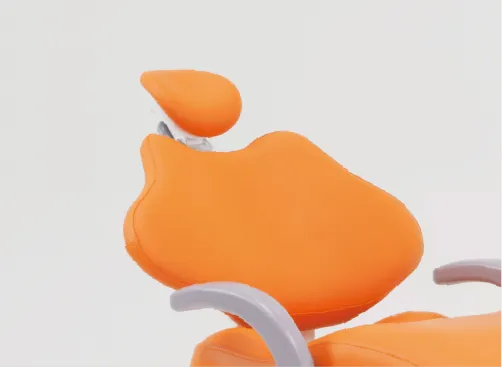

Relaxis microfiber upholstery (seamless PU upholstery optional)
Optional: continental delivery system, narrow backrest
Includes AJAX02 dental stool (4 functions, seat lift range 450mm-570mm)
Technical specifications
The numbers.
| Specification | Value |
|---|---|
| Load bearing | 180 kg |
| Chair height adjustment | 350 - 780 mm |
| Control panel | 15 functions (doctor) / 10 functions (assistant) |
| Water bottles | 1.3 L (sterilizing) / 1.5 L (water) |
| Light output | Max. 40,000 lux |
| Colour temperature | >5200K (max) / <3500K (min) |
| Programmable positions | 3 |
